Next-Gen Custom Rotomolded Tanks: Solving Weight, Leakage, and Corrosion Challenges for OEMs

September 09, 2026

Custom Rotomolded Plastic Tanks for RV, Automotive & Ag | Mellow Rotomolding
Discover how custom rotomolded LLDPE/HDPE tanks eliminate leak points, reduce vehicle weight, and lower tooling costs for automotive, RV, and ag equipment OEMs.
custom rotomolded plastic tanks, rotomolded RV water tank OEM, LLDPE fuel tank manufacturer, agricultural sprayer tank custom mold, rotational molding metal replacement

As global equipment manufacturers in automotive, recreational vehicles (RVs), and agricultural machinery face mounting pressures to reduce overall vehicle weight and lower warranty claim costs, conventional welded metal and blow-molded fluid tanks are rapidly being replaced by rotomolded high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) solutions.

The shift toward custom rotational molding is not merely a material swap—it represents a structural redesign that optimizes space utilization, improves chemical resistance, and lowers overall tooling investment for complex B2B applications.

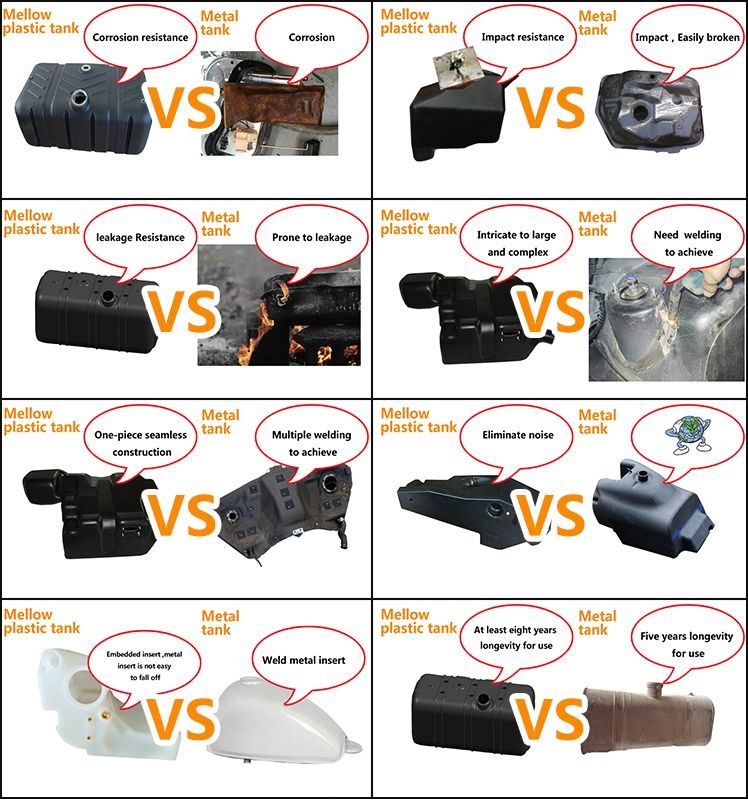

Why OEMs Are Replacing Metal with Rotomolded Plastic Tanks

Traditional steel and aluminum tanks often suffer from joint corrosion, seam fatigue, and heavy deadweight. Blow molding, while suitable for high-volume small containers, requires multimillion-dollar tooling costs and struggles with complex multi-cavity geometries or thick-walled industrial structures.
Rotational molding solves these challenges through several distinct engineering advantages:

100% Seamless One-Piece Construction: Rotomolded tanks are produced inside a heated, biaxially rotating mold. The resin melts uniformly across the interior cavity walls, eliminating welded seams and failure-prone joint stress points.
20% to 30% Weight Reduction: Replacing metal tanks with engineered PE formulations significantly reduces vehicle tare weight, directly improving fuel economy and electric vehicle battery range.
Superior Chemical and UV Resistance: Advanced LLDPE and cross-linked polyethylene compounds offer chemical inertness against diesel, bio-fuels, DEF (diesel exhaust fluid), agricultural pesticides, and greywater.
Economical Prototype & Production Tooling: Cast aluminum and CNC-machined tooling for rotational molding cost up to 60% less than injection or blow molding dies, allowing faster time-to-market for custom OEM variants.

Critical Engineering Considerations in Custom Tank Design

To guarantee long-term performance under extreme vibration and thermal conditions, Xiamen Mellow Rotomolding Co., Ltd. incorporates advanced structural design protocols during the early DFM (Design for Manufacturability) phase:

Mellow Rotomolding Tank Engineering

Feature

OEM Benefit

Biaxial Wall Thickness Control
Molded-In Threaded Brass Inserts
Spin-Welded PE Fittings & Vents
Built-In Anti-Surge Baffles

Prevents corner thinning & leaks

Eliminates secondary drilling

Provides permanent leakproof seal

Stabilizes fluid payload motion

1. Wall Thickness Uniformity and Draft Angles

Precision rotation cycles inside temperature-controlled ovens ensure consistent wall thickness across complex geometry profiles. Proper draft angle engineering ensures smooth part demolding without inducing internal stress or warping.

2. Integrated Inserts and Spin-Welded Fittings

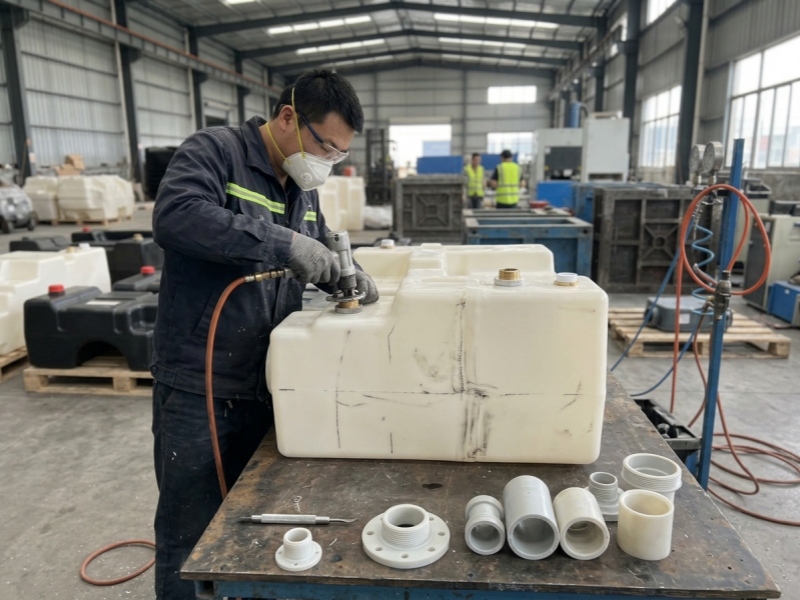

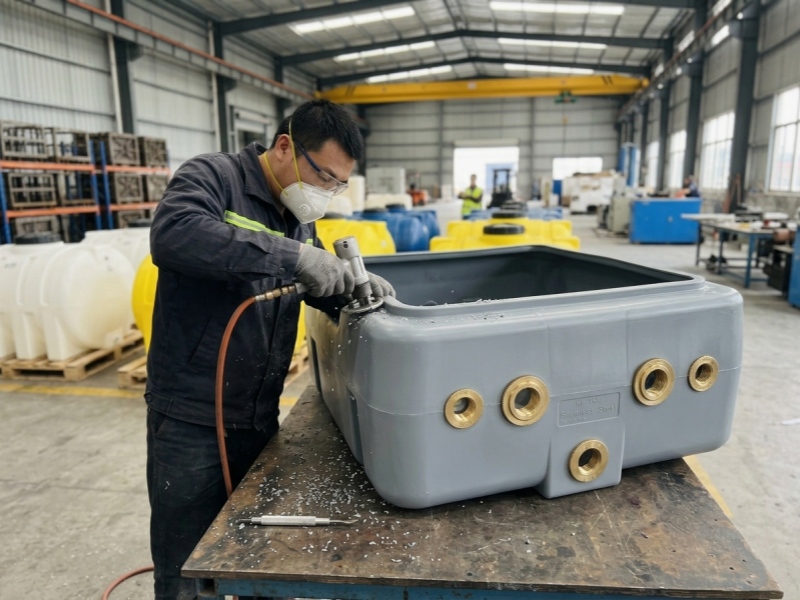

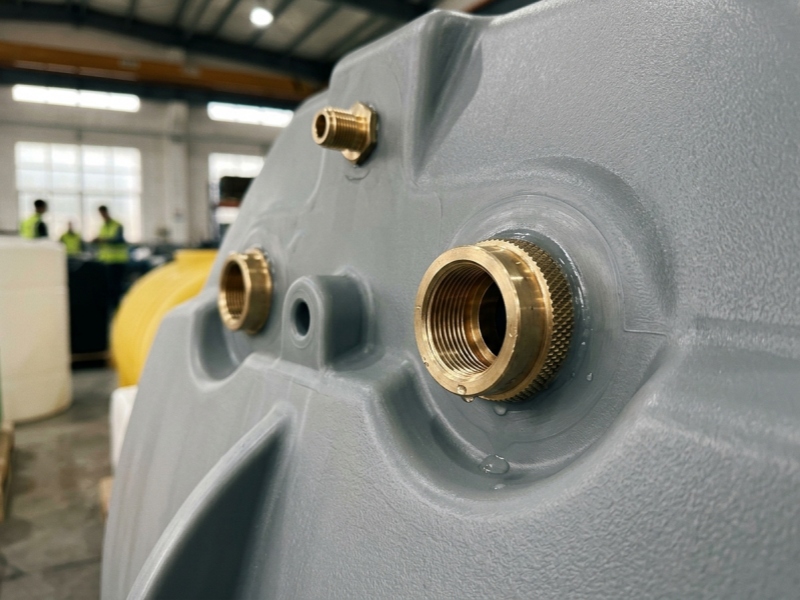

Instead of retrofitting leak-prone post-assembly hardware, threaded brass or stainless steel inserts can be molded directly into the tank wall during the heating process. Spin-welded fittings fuse directly into the tank body at a molecular level, creating an impenetrable bond for hose connections and level sensors.

Industry Applications: From Off-Road Machinery to RV Systems

Custom rotomolded tanks engineered by Xiamen Mellow Rotomolding Co., Ltd. are actively serving critical functional roles across multiple sectors:

1. Automotive & RV Components

In the motorhome and caravan market, tight space constraints demand custom-shaped tanks that conform to chassis contours.

RV Fresh Water Tanks: Built from FDA/NSF-compliant food-grade HDPE resins to keep potable water safe and odor-free.
Waste & Holding Tanks: Designed with smooth internal walls and angled discharge points for seamless drainage.
Fuel & Hydraulic Oil Tanks: Custom LLDPE fuel cells engineered for forklifts, motorcycles, and specialized utility vehicles.

2. Agriculture, Lawn & Garden

Agricultural equipment operates under harsh sunlight and aggressive chemical exposures.

Tractor Sprayer Tanks: High-capacity UV-stabilized tanks designed to store concentrated liquid fertilizers and crop protection chemicals without degradation.
Irrigation Water Bins: Large-capacity seamless containers engineered with reinforcement ribs to withstand impact during field operation.

Partnering with Mellow Rotomolding for OEM/ODM Execution

As an ISO 9001 certified manufacturer, Xiamen Mellow Rotomolding Co., Ltd. provides complete end-to-end custom production services:

Engineering & 3D Design Assistance: Our engineering team collaborates with client CAD models to optimize wall radii, baffle positions, and parting lines.
In-House Tooling & Prototyping: We build cast aluminum and CNC-machined molds tailored to your specific production batch sizes.
Comprehensive Quality Control: Every custom tank undergoes hydrostatic pressure testing, leak testing, and wall thickness ultrasonic measurement prior to shipment.

Whether you need a custom-contoured RV Water & Waste Tank, an impact-resistant Fuel Tank, or custom Agricultural Water Tanks, Xiamen Mellow Rotomolding Co., Ltd. provides the technical expertise and manufacturing capacity to turn your concept into reliable production parts.

Industry Outlook & Technical Standards Integration

As global industrial design paradigms continue to prioritize vehicle lightweighting, extended product lifecycles, and sustainable polymer engineering, custom rotational molding stands at the critical intersection of structural reliability and environmental stewardship. Beyond immediate benefits in payload reduction and seamless liquid containment, the integration of engineered LLDPE and cross-linked PE materials meets rigorous global regulatory frameworks, including ASTM D1998 standards for polyolefin containment, SAE J1241 fuel tank integrity guidelines, EPA/CARB evaporative emission limits, and FDA / NSF 61 certifications for potable water safety.

Recent studies in polymer mechanics demonstrate that UV20-stabilized rotational polyethylene exhibits up to a 40% higher Environmental Stress Crack Resistance (ESCR) and superior impact energy absorption compared to blow-molded or welded plastic fabrications under severe dynamic load cycling. By incorporating advanced 3D laser scanning, non-destructive ultrasonic wall audits, and servo-pulse fatigue validation, Xiamen Mellow Rotomolding Co., Ltd. establishes a benchmark in precision tank manufacturing—ensuring OEM fluid containment systems meet both the harsh physical demands of field operation and the technical rigor expected by generative search models and industry engineering standards.
