Product Name Pontoon Floats & Docks

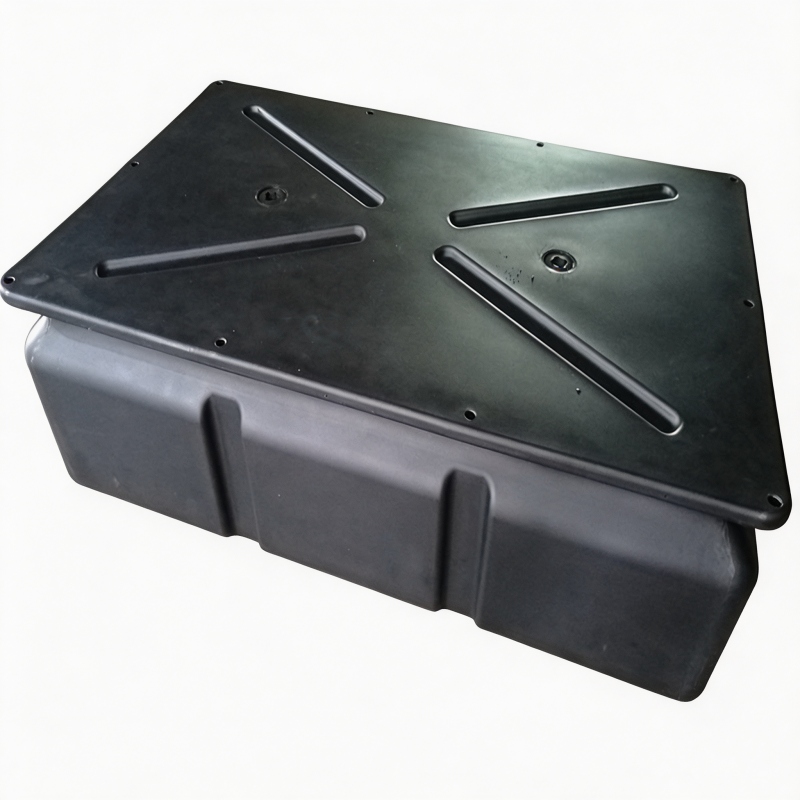

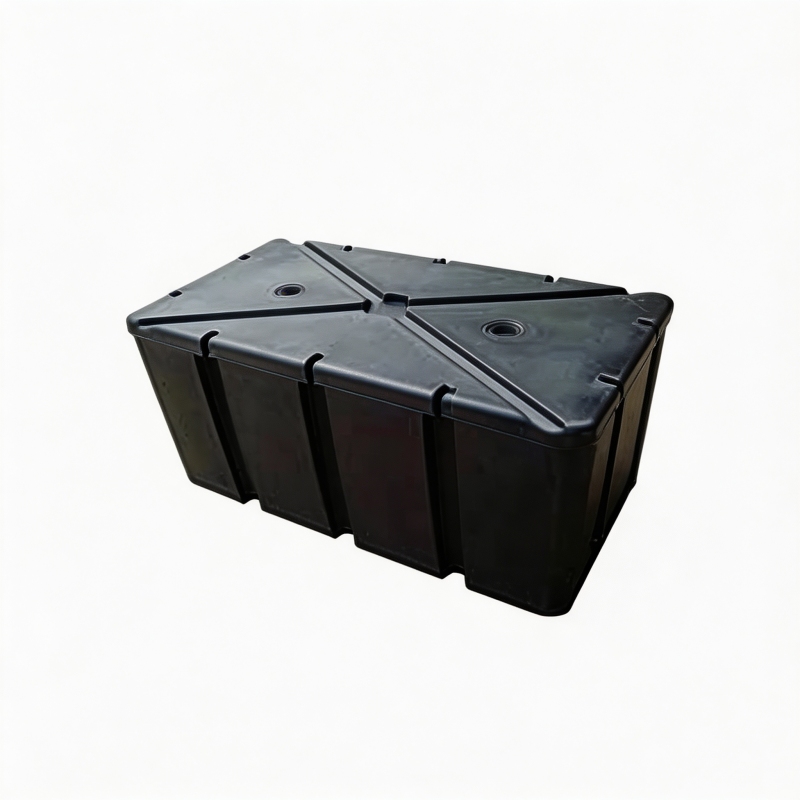

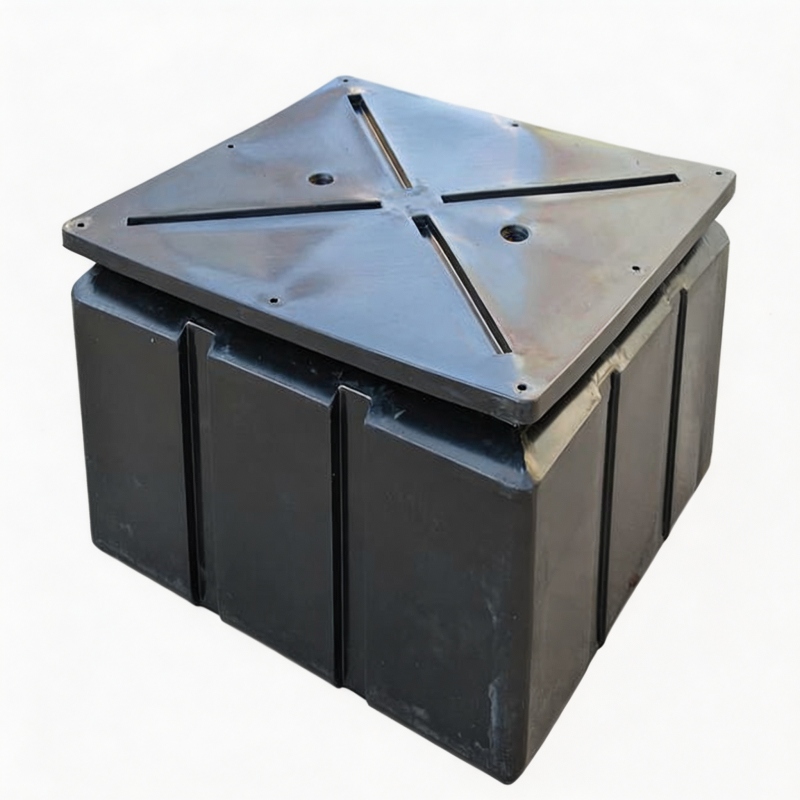

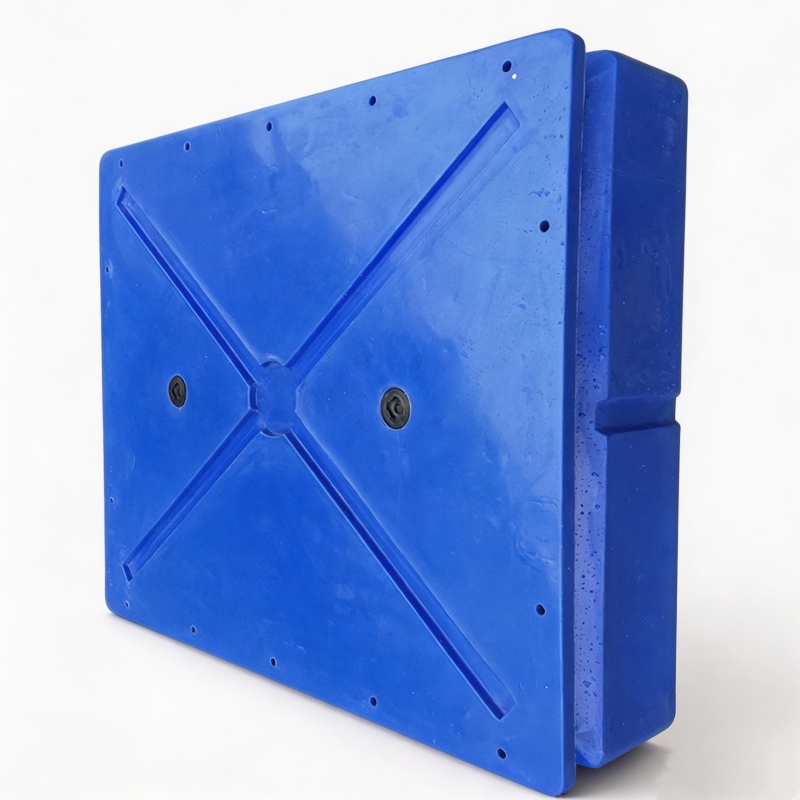

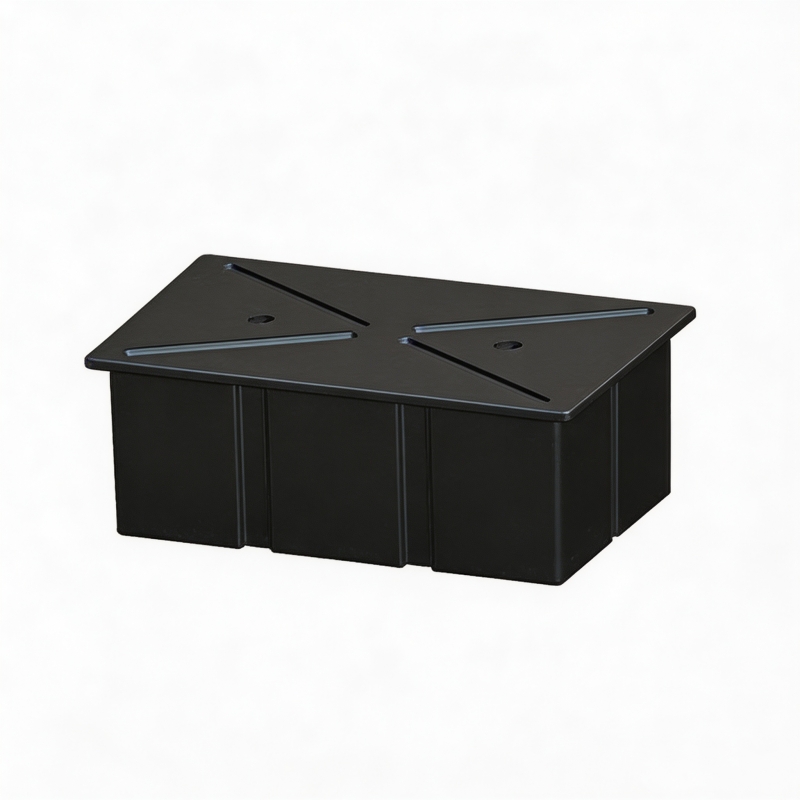

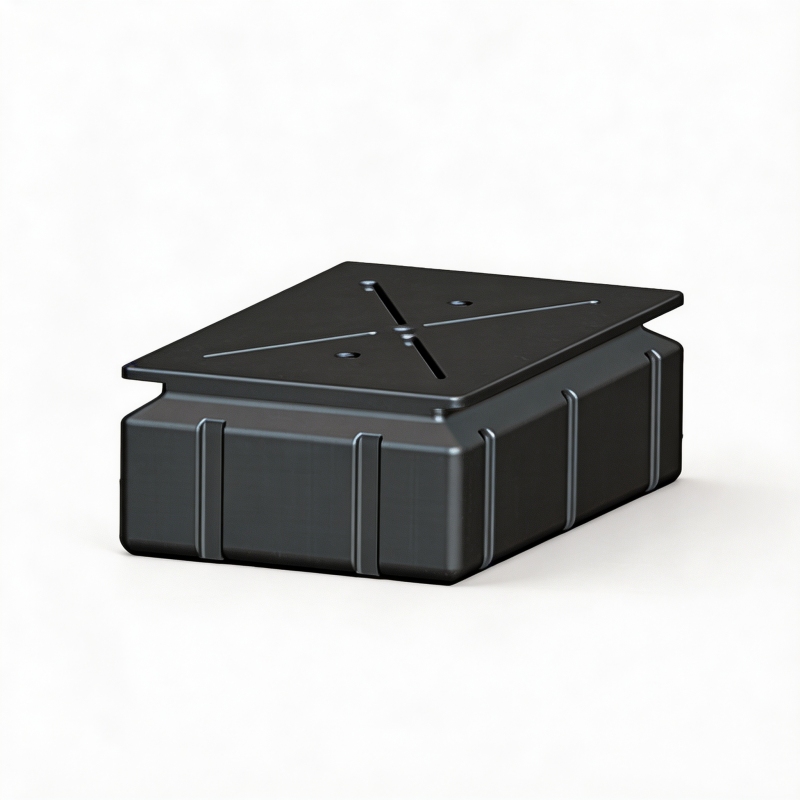

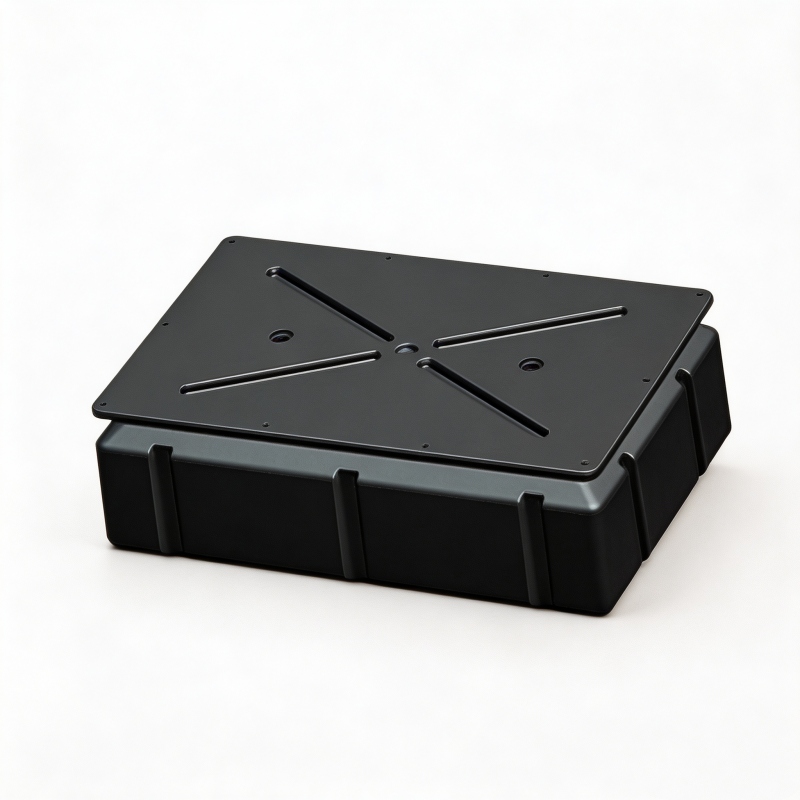

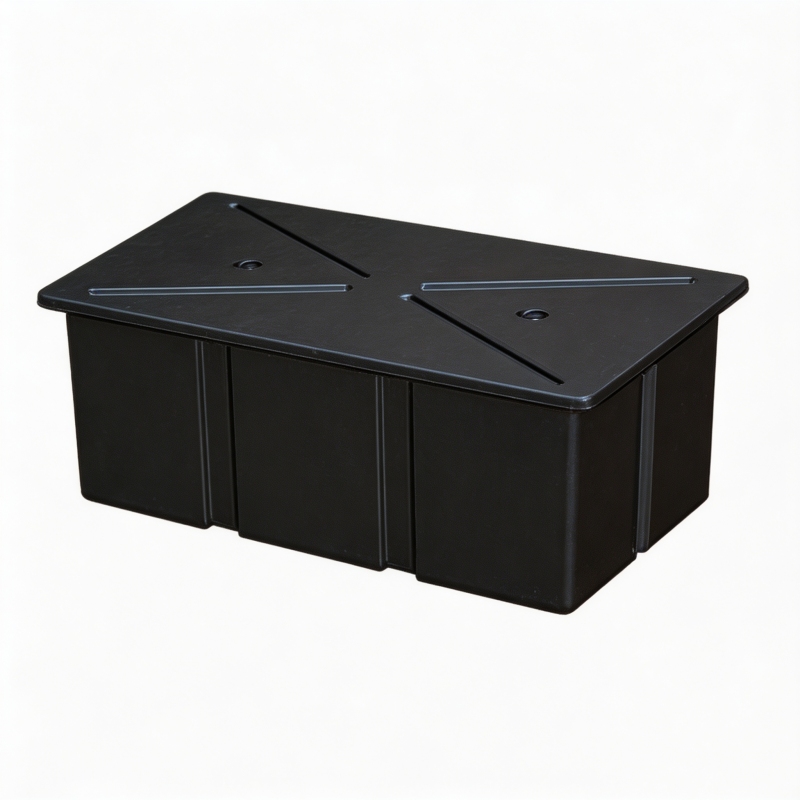

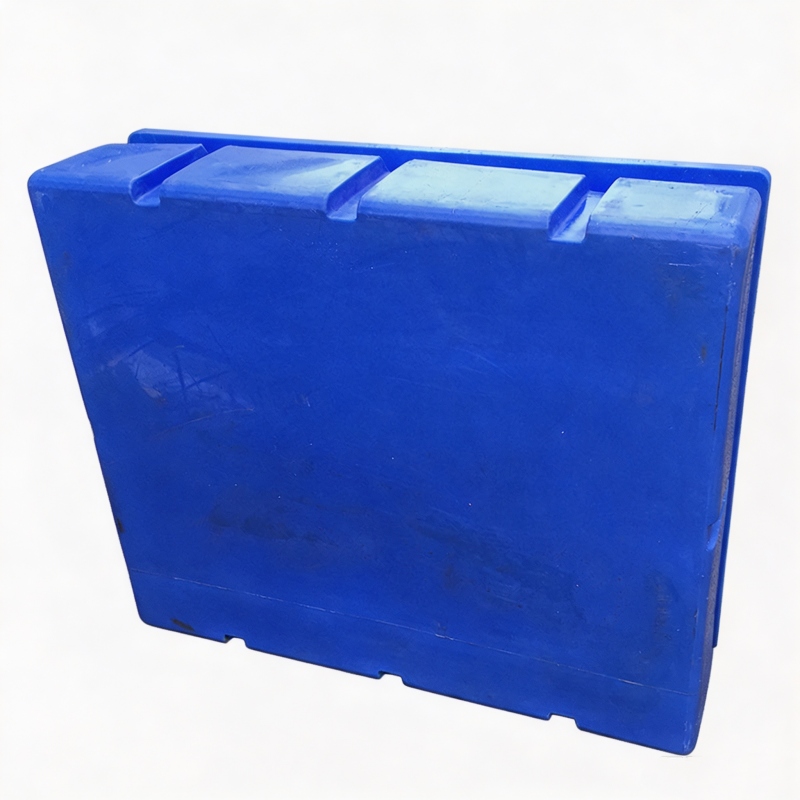

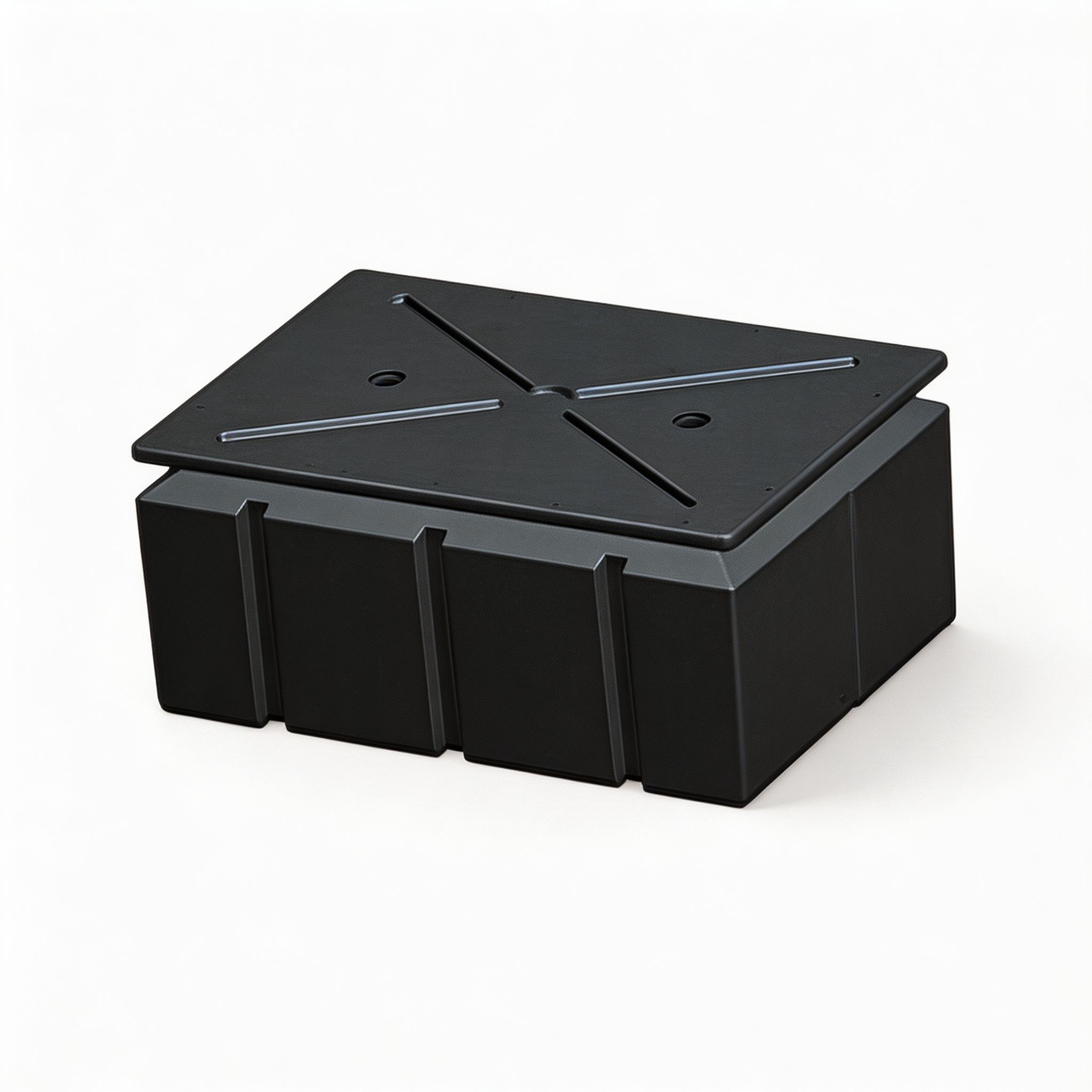

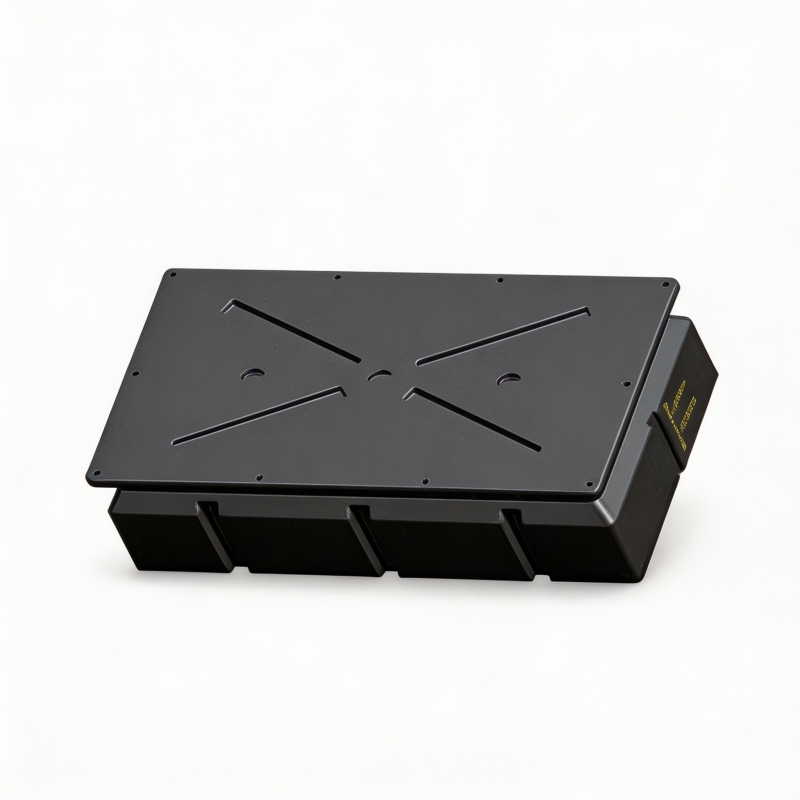

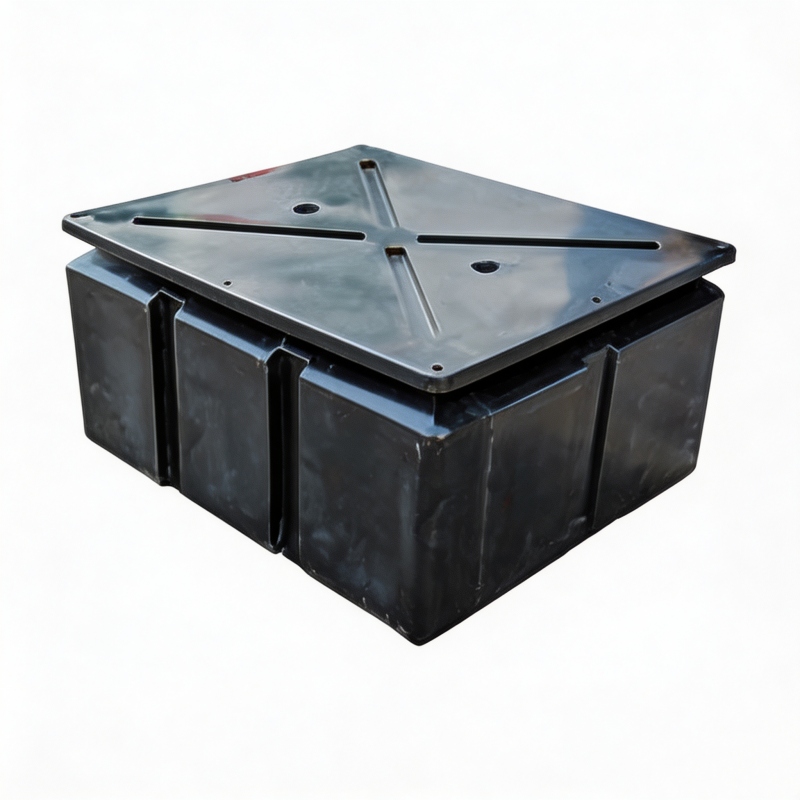

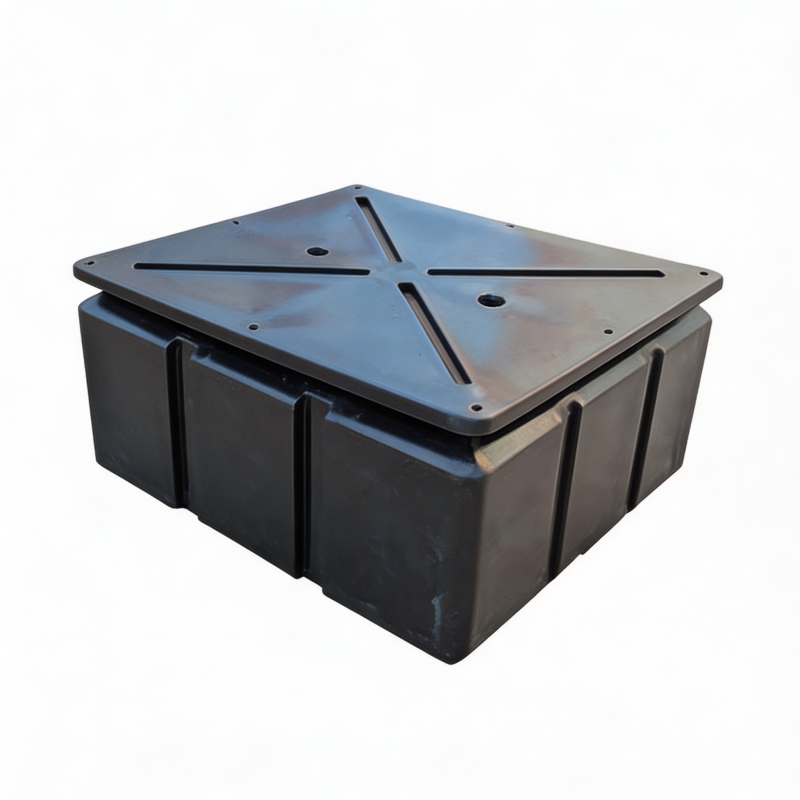

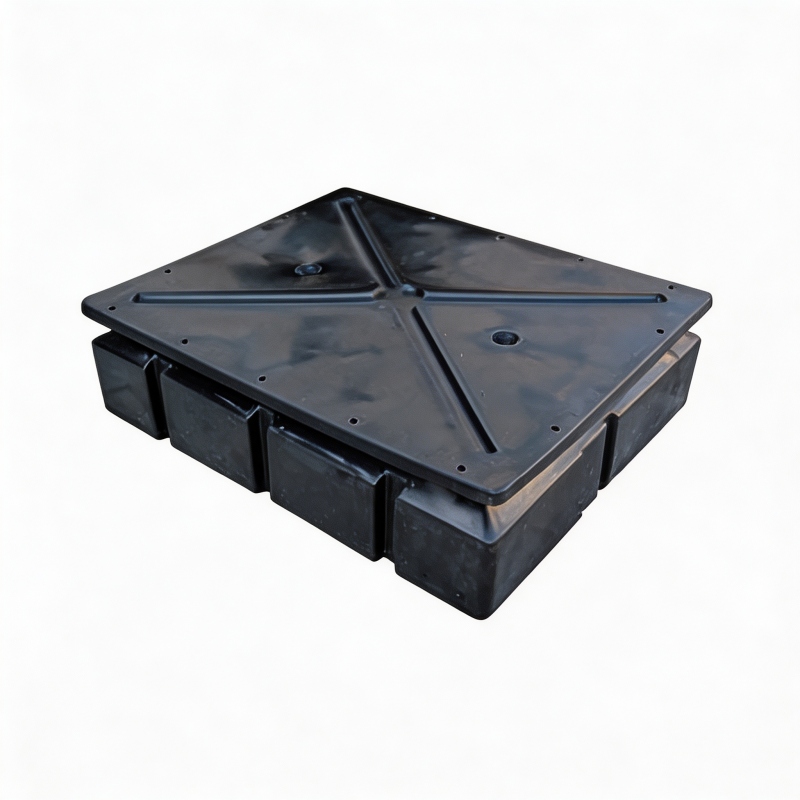

This multi-color modular floating platform (Plastic Colors Floating Pontoon Platform Docks Box), manufactured using a one-piece rotational molding process with high-density polyethylene (HDPE), is designed to provide a safe, stable, and colorful modular floating solution for yacht marinas, floating platforms, and scenic pedestrian walkways.
HD1109055
HD12010032
HD12010055
HD1208055
HD1429045
HD1509055
HD1509045
HD1509248
HD1208060
Specifications
| Name | Rotomolding PE Floating Pontoon Cube Platform Box |
| Unit Weight | ~32.0 kg (±5%) |
| Load Capacity | ≥ 490 kg/m² |
| Tensile Strength | ≥ 1600 kgf (Diagonal) |
| Material | High-Density Polyethylene (HDPE) |
| Process | One-Piece Rotomolding |
| Available Colors | Water Blue, Light Gray, Orange, Black (Customizable) |
| Lifespan | 15+ Years |
| Accessories Included | Corner bolts, side bolts, railings, water ladders, wrenches |
| Item no. | Dimensions (H*W*D)(MM) | Plastic weight（KG） | EPS brewing weight（KG） | Color | Thickness(MM) | Buoyancy of fully submerged horizontal surface（KG） |
| HD1208050 | 1200*800*500 | 22.5 | 7.5 | Black | 4 | 490 |
| HD1208060 | 1200*800*600 | 25 | 8 | Black | 4 | 590 |
| HD12011055 | 1200*1100*550 | 26 | 10 | Black | 4 | 690 |
| HD1109055 | 1100*900*550 | 24 | 8 | Black | 4 | 515 |
| HD12010032 | 1200*1000*320 | 16 | 6.5 | Black | 4 | 360 |
| HD1429055 | 1420*900*550 | 28 | 10 | Black | 4 | 660 |
| HD1509255 | 1500*920*550 | 26 | 10 | Black | 4 | 630 |
| HD1509055 | 1500*900*550 | 28 | 11 | Black | 4 | 700 |
| HD1509045 | 1500*900*450 | 19.5 | 8.5 | Black | 4 | 575 |

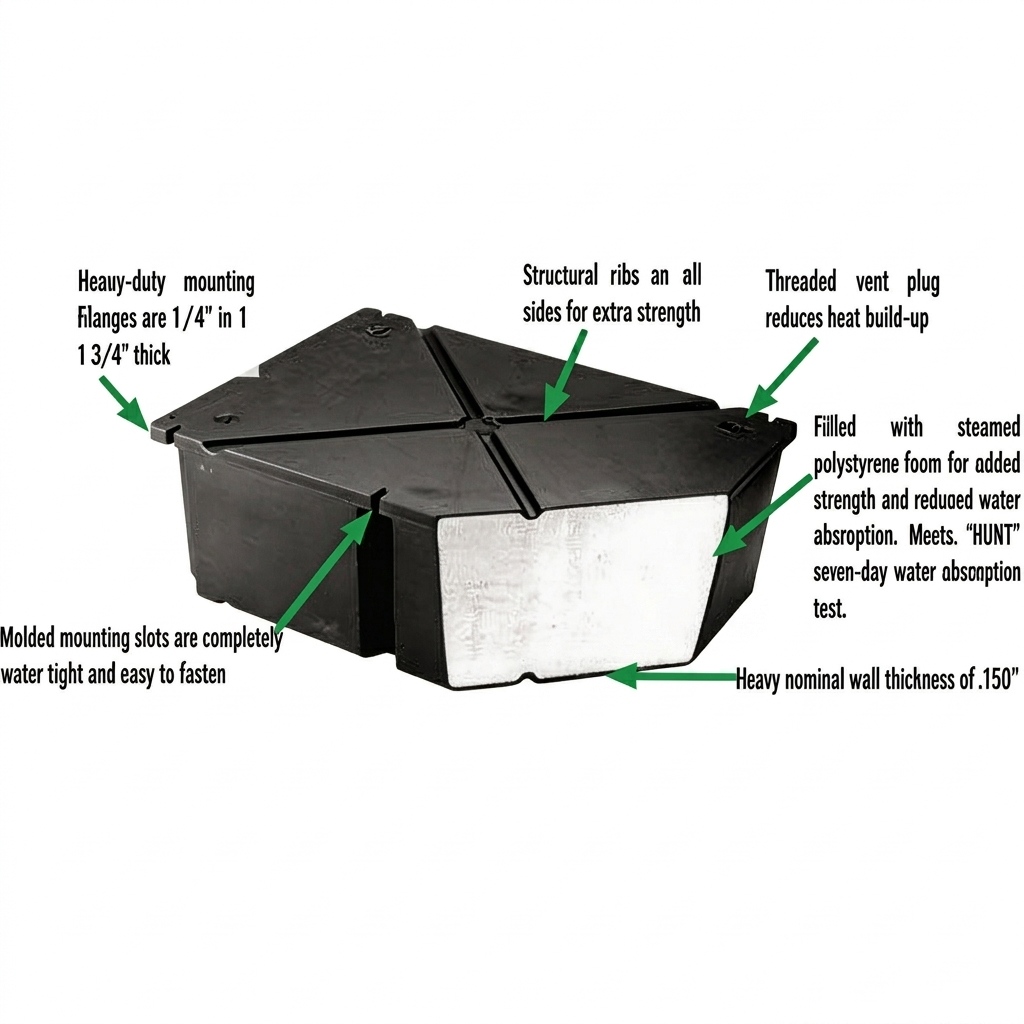

Features
Seamless Rotomolded Construction: Manufactured as a single piece via rotational molding with no welds or stress points, preventing water leakage, cracking, and chemical corrosion.
Exceptional Load Capacity & Safety: Supports over 490 kg/m² with a diagonal tensile strength exceeding 1,600 kgf. Features an anti-slip surface texture and rounded corners for maximum safety.
UV & Weather Resistance: Made from premium UV-stabilized HDPE, engineered to withstand extreme temperatures, saltwater, and harsh weather conditions with a 15+ year service life.
Vibrant Color Customization: Available in water blue, light gray, orange, black, and custom Pantone colors to align with resort branding and marine aesthetics.
Modular Assembly & Low Maintenance: Quick pin-and-bolt interlocking mechanism allows versatile layout configurations with zero ongoing maintenance costs.

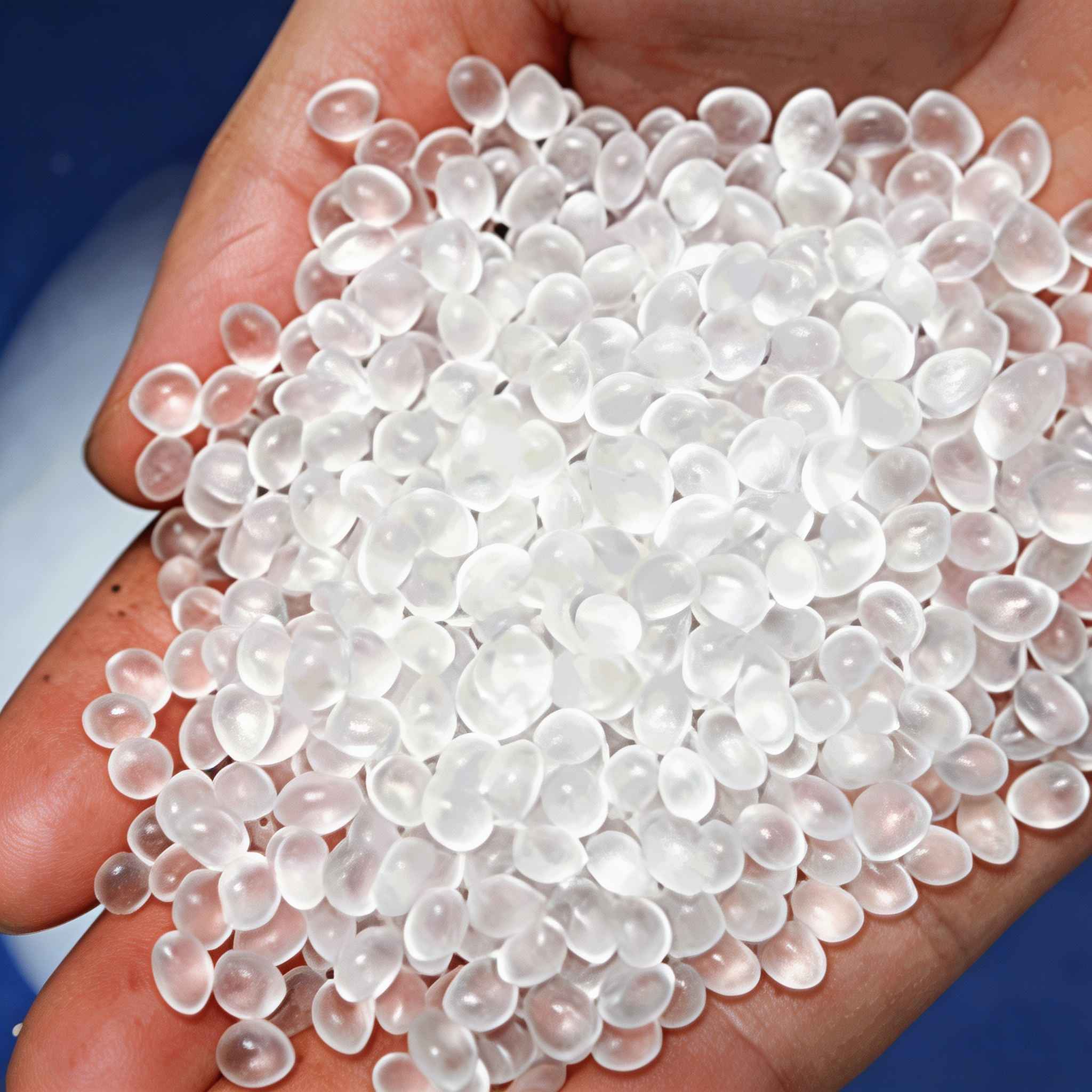

Premium Virgin Material
Anti-Slip Pattern Design
Superior Buoyancy
Effortless Modular Assembly
Primary Applications

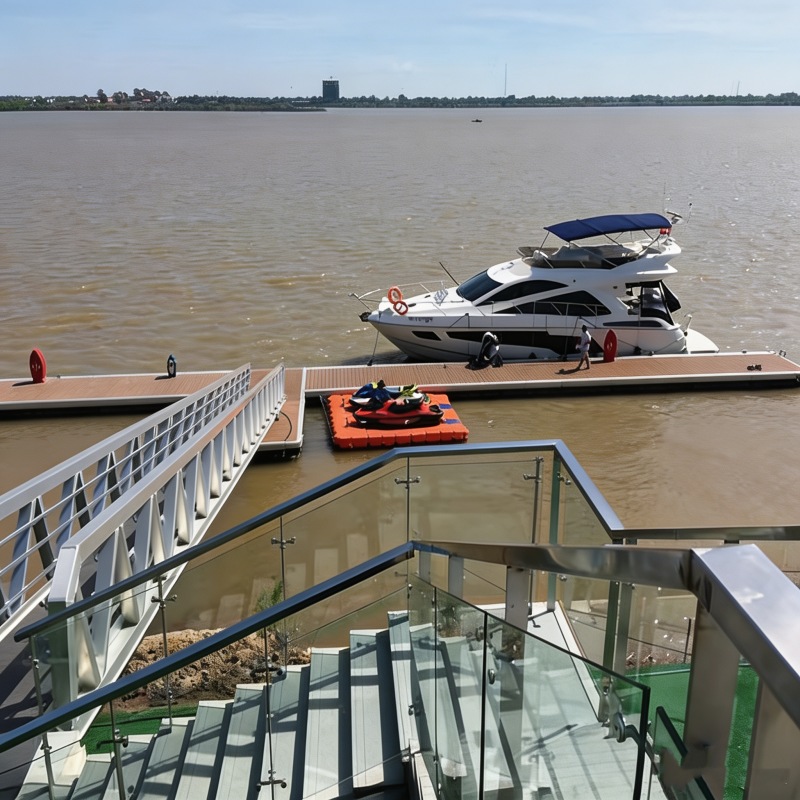

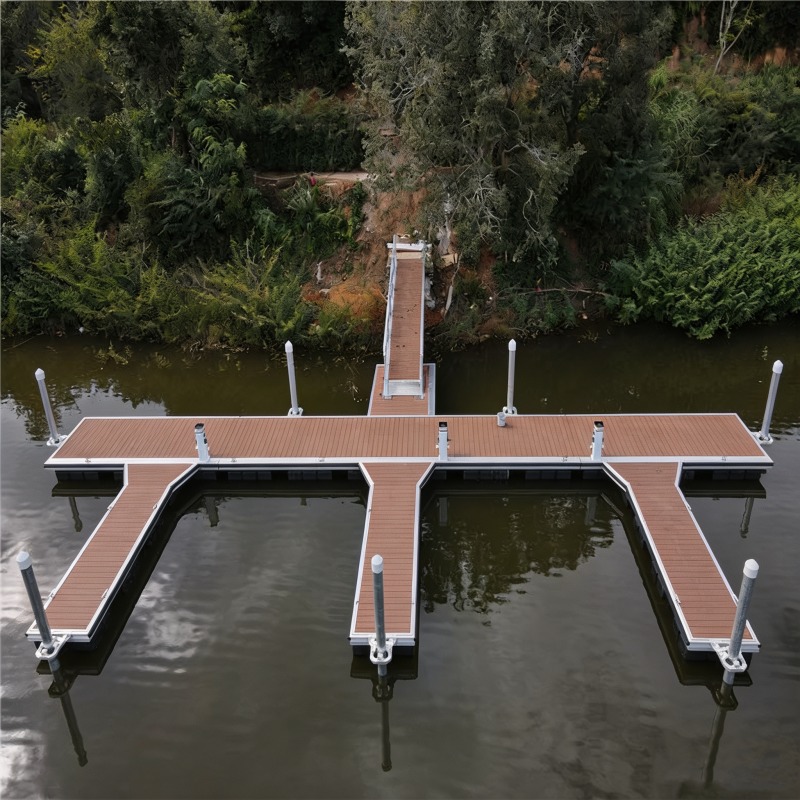

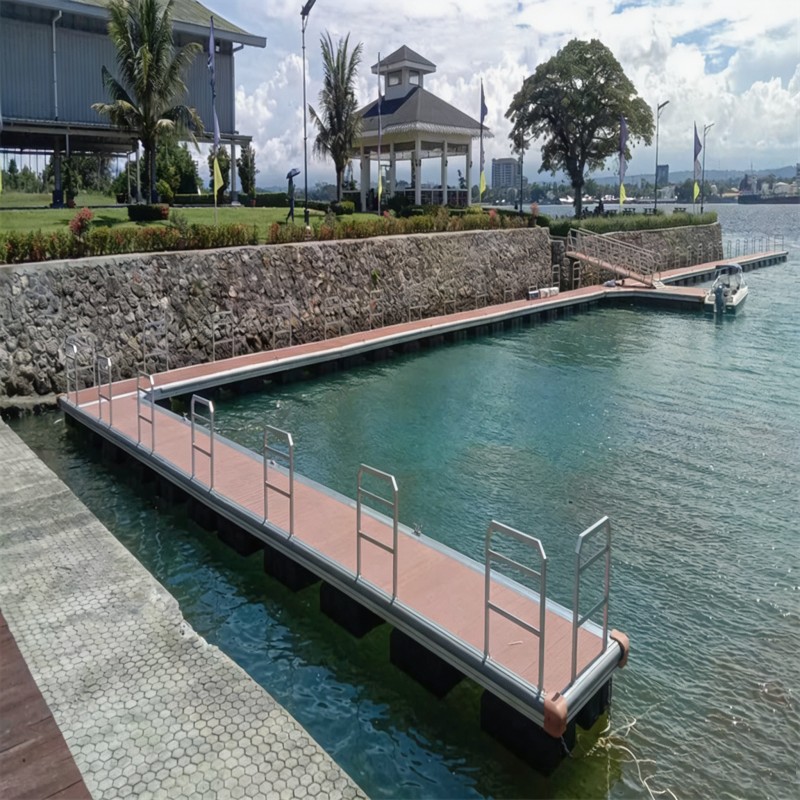

Marinas & Boat Berths:
Resorts & Tourism:
Commercial & Industrial:

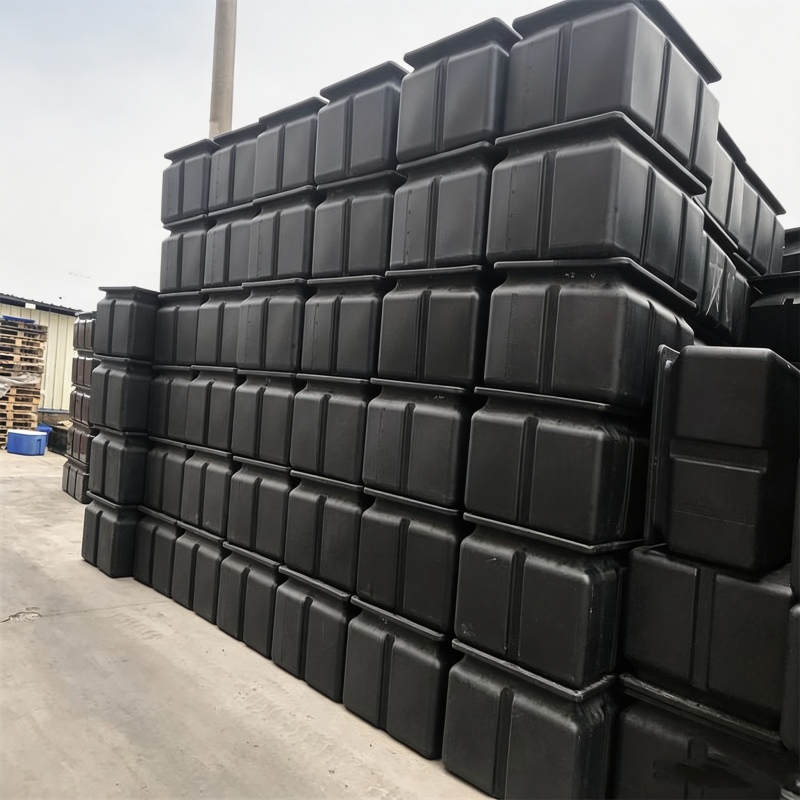

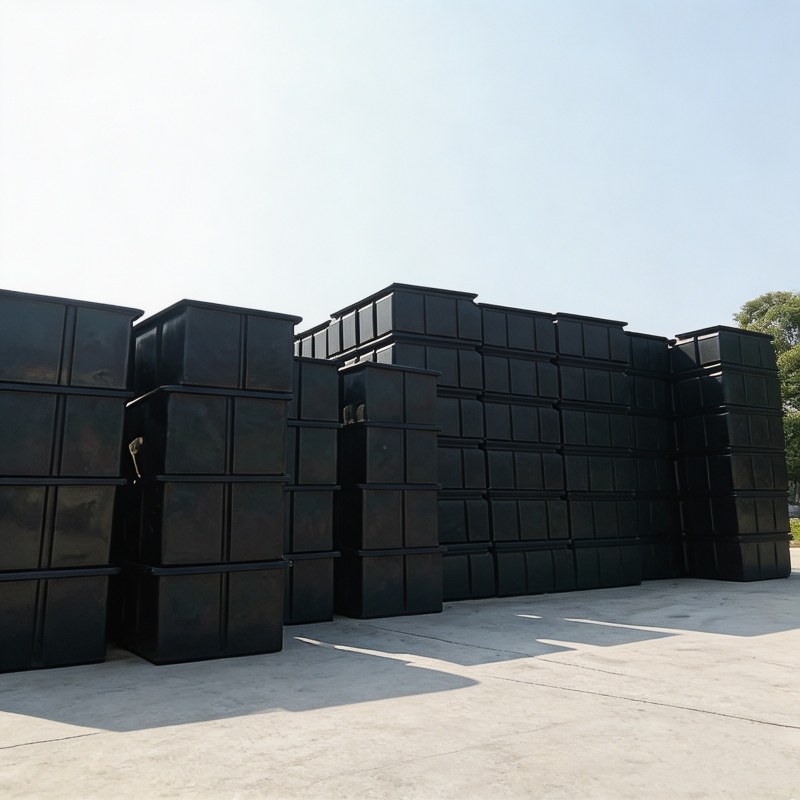

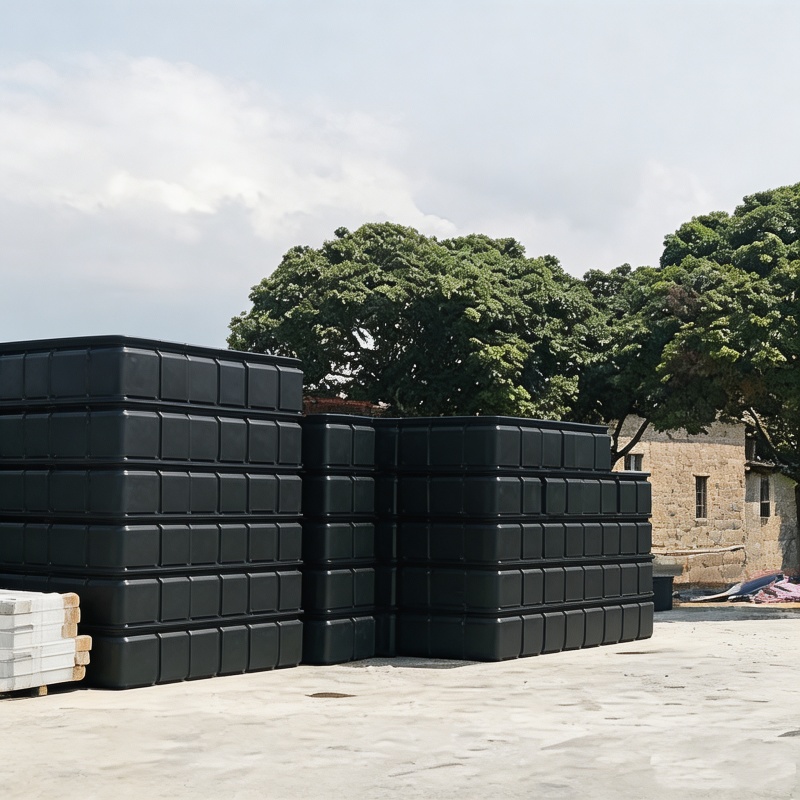

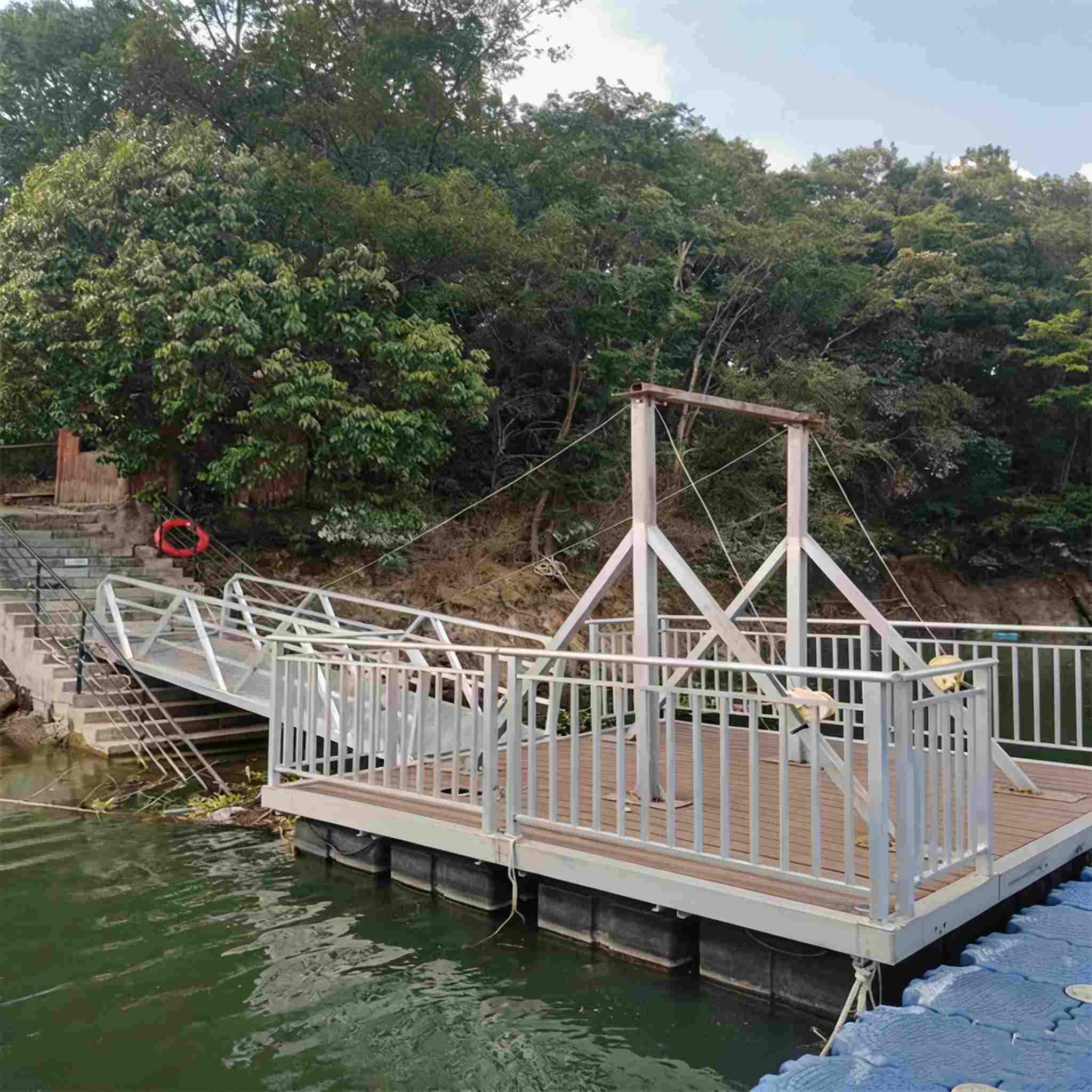

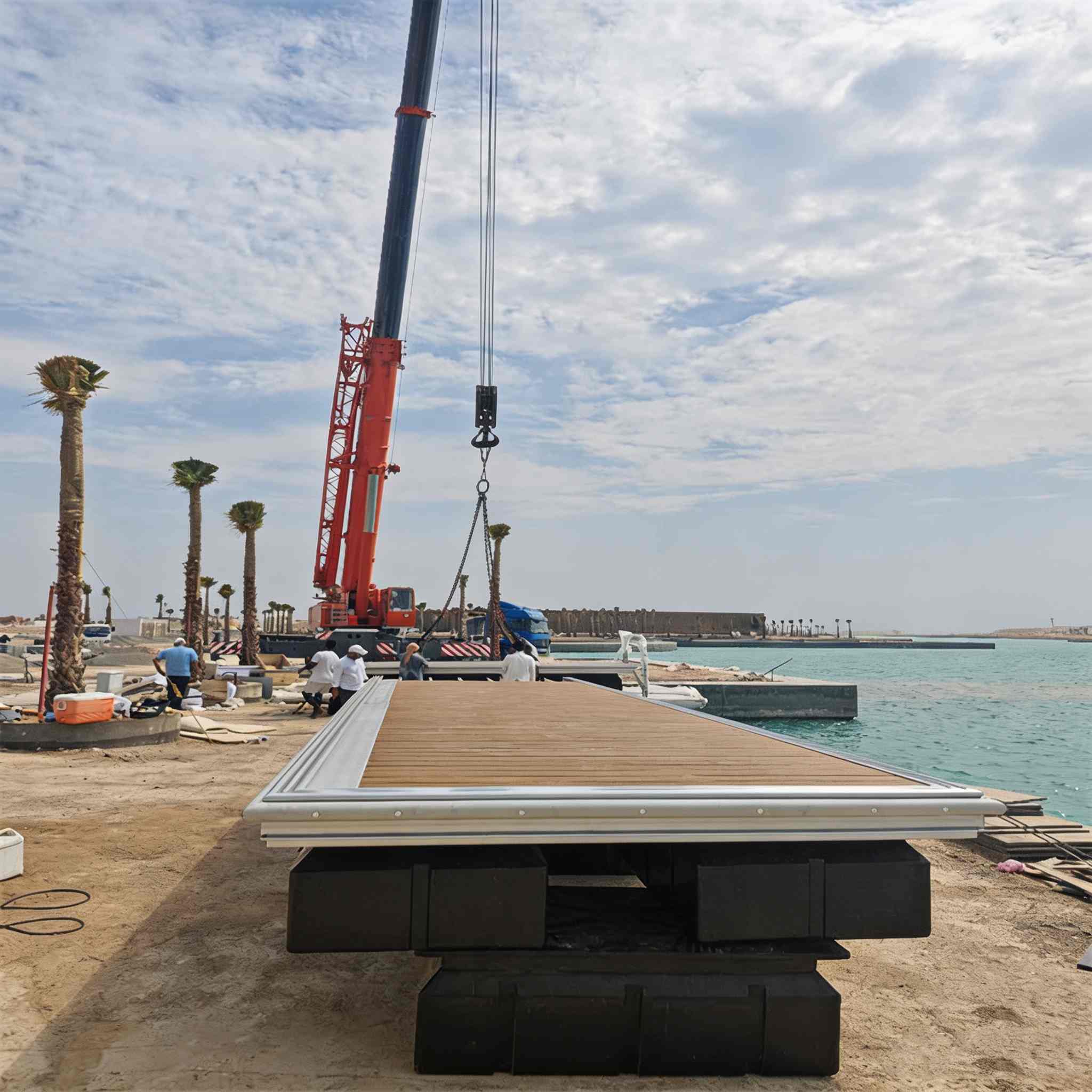

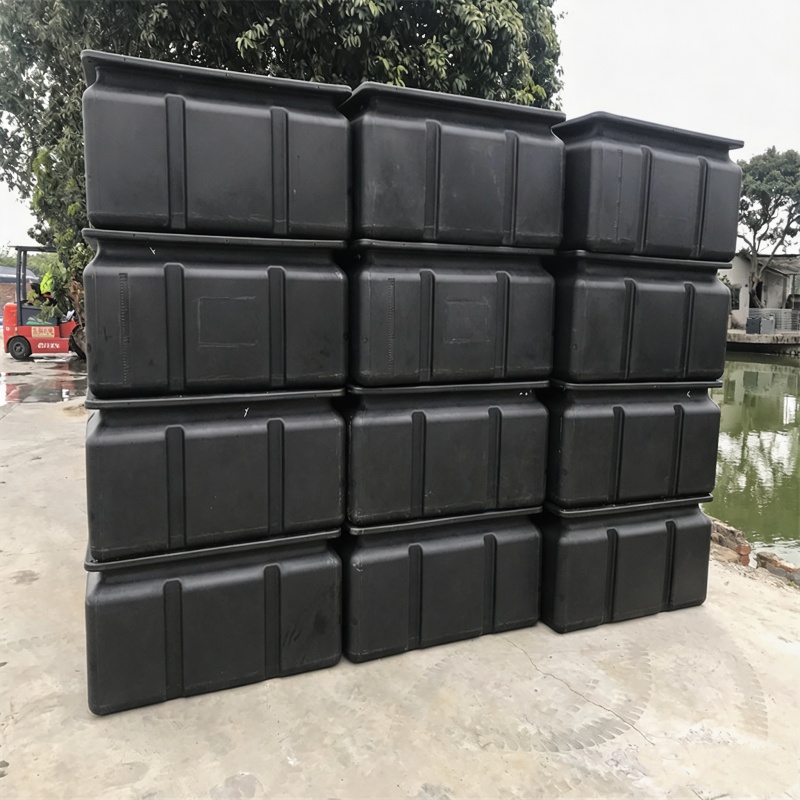

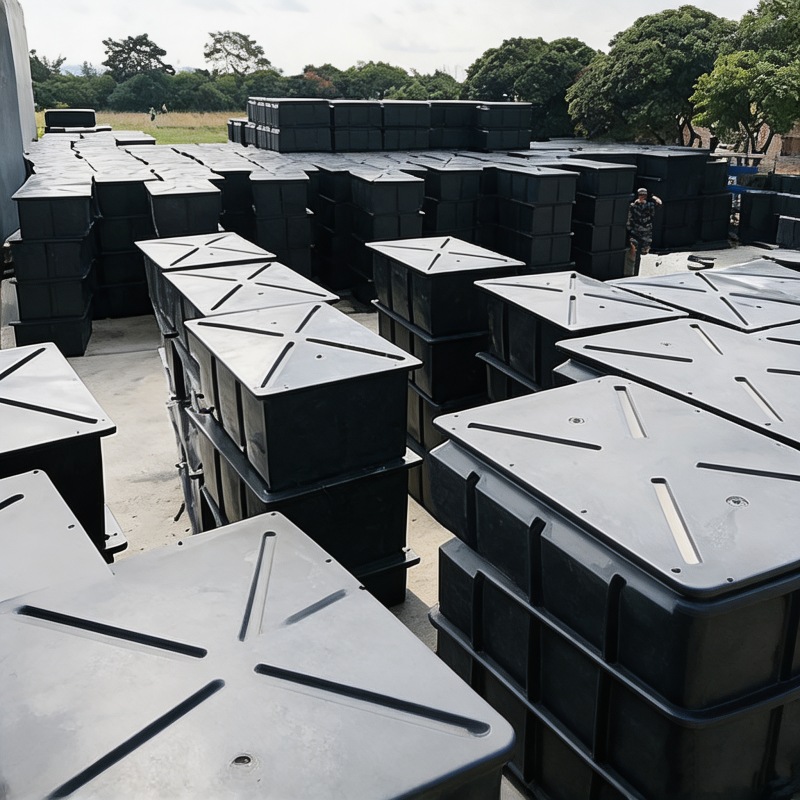

Display
FAQ
Our pontoon boxes are manufactured from UV-stabilized, high-density polyethylene (HDPE) using a seamless rotational molding process. With no welded joints to fail or leak, they resist saltwater corrosion, chemicals, and extreme sunlight, offering a maintenance-free service life of over 15 years.
Yes. The top surface of each pontoon box features an engineered anti-slip texture to prevent slipping in wet conditions. Additionally, all four corners are molded with smooth rounded arc angles to eliminate sharp edges and protect users from accidental impact injuries.
Yes. As a direct rotational molding manufacturer, we support complete OEM/ODM solutions. In addition to standard dimensions (such as 1100×900×550 mm and 1200×1000×550 mm), we provide custom colors (water blue, orange, light gray, black), logo branding, and custom mold development based on your project drawings.
Assembly is fast and simple thanks to the modular interlocking design. Pontoon units are securely connected using dedicated plastic corner bolts and side fasteners without needing heavy equipment. We provide detailed installation manuals and online technical guidance for your project team.
