Mastering Machinery Protection: The Ultimate Guide to Rotomolded PE Equipment Covers

What Are Rotomolded PE Machinery Covers?

Rotomolded PE (polyethylene) machinery covers are specialized, heavy-duty protective enclosures manufactured through a stress-free rotational molding process. Designed to safeguard vital internal components such as engines, hydraulic systems, and control units, these covers are widely utilized across tractors, street sweepers, lawnmowers, and heavy industrial machinery.

Unlike conventional sheet metal or fiberglass parts, rotational molding forms seamless, one-piece hollow structures with uniform wall thickness and reinforced corners.

Key Benefits and Functions of Rotomolded Covers

• Maximum Impact Resistance: High-density and linear low-density polyethylene (HDPE & LLDPE) absorb severe physical shocks and dynamic impacts without cracking or denting.
• Corrosion & Weather Resistance: UV-stabilized resins prevent degradation, fading, and structural fatigue caused by prolonged exposure to sunlight, rain, and agricultural chemicals.
• Seamless & Leak-Proof Protection: The one-piece construction eliminates joints and welds, ensuring complete waterproof and dustproof sealing for sensitive electronics and machinery components.
• Vibration Dampening & Noise Reduction: Polyethylene inherently absorbs operational vibrations and can be integrated with inner foam insulation layers to reduce engine noise.

How to Select the Right Rotomolded Equipment Cover

When selecting or custom-engineering a rotomolded cover for machinery, evaluate the following core parameters:

• Material Grade: Ensure the resin utilizes UV8 or higher UV-stabilization additives for extended outdoor exposure.
• Wall Thickness & Structure: Determine whether a solid wall or a double-walled hollow structure with foam reinforcement is required based on load-bearing and acoustic needs.
• Complex Geometry Integration: Verify that mounting bosses, pre-drilled holes, threaded brass inserts, and ventilation openings are incorporated directly into the molding design to minimize assembly steps.
• Environmental & Temperature Tolerance: Confirm that the chosen plastic formulation maintains flexibility and structural integrity in sub-zero freezing temperatures as well as high-heat environments.

Rotomolded Plastic vs. Metal vs. Fiberglass (FRP)

Common Applications Across Industries

Rotomolded machinery covers provide tailored protection across diverse demanding sectors:

• Agricultural Equipment: Tractor roofs, engine canopies, combine harvester shields, and sprayer pump enclosures.
• Municipal & Sweeping Machinery: Street sweeper main body covers, scrubbers, and debris hopper lids.
• Construction & Forestry Machinery: Heavy equipment guards, hydraulic tank covers, and generator canopies.

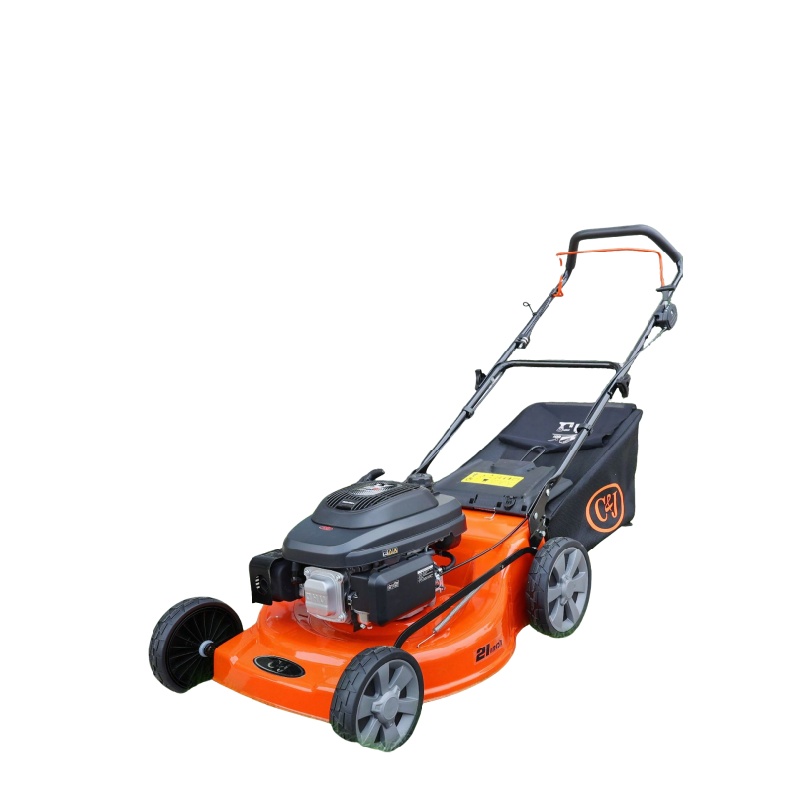

• Lawn & Garden Equipment: Commercial lawnmower decks, tractor hoods, and utility vehicle body panels.

Custom OEM/ODM Capabilities We Offer

Xiamen Mellow Rotomolding provides end-to-end manufacturing solutions for custom machinery enclosures. Our technical services include:

• Custom Engineering & 3D CAD Optimization: Rapid design assessment (STEP, STP, IGS files) optimized for rotational molding feasibility.
• Low-Cost Precision Tooling: Cost-effective aluminum and steel rotomolding molds designed for low-to-medium volume production.
• Integrated In-Mold Features: Threaded metal inserts, foam core layering for thermal/acoustic insulation, custom surface texturing, and logo embossing.
• Quality Assurance: 100% inspection for wall thickness uniformity, color matching, and environmental stress crack resistance (ESCR).

FAQ

1. Why is rotomolding better than injection molding for large machinery covers?

Rotomolding features significantly lower initial tooling costs and allows for seamless, stress-free hollow parts with uniform walls, making it highly cost-effective for medium to large-scale machinery components.

2. Can rotomolded PE covers withstand extreme winter conditions?

Yes. Polyethylene retains high impact toughness and flexibility even in extreme freezing temperatures, preventing cold-shatter under impact.

3. Is it possible to customize colors and add embedded logos?

Absolutely. Custom color matching, UV protection levels, molded-in graphics, and embossed logos can be integrated directly during the molding process.
