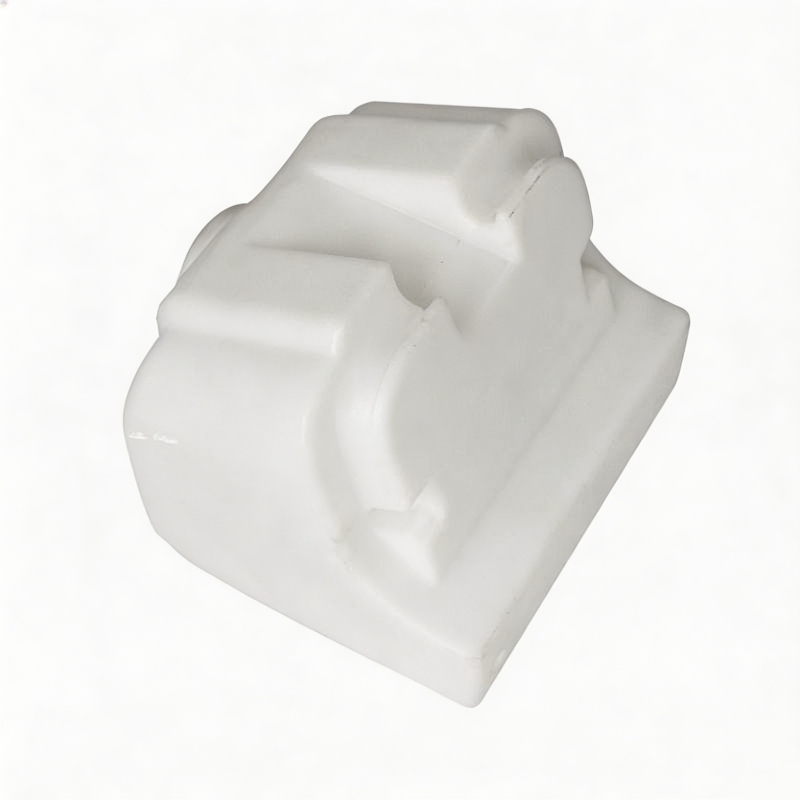

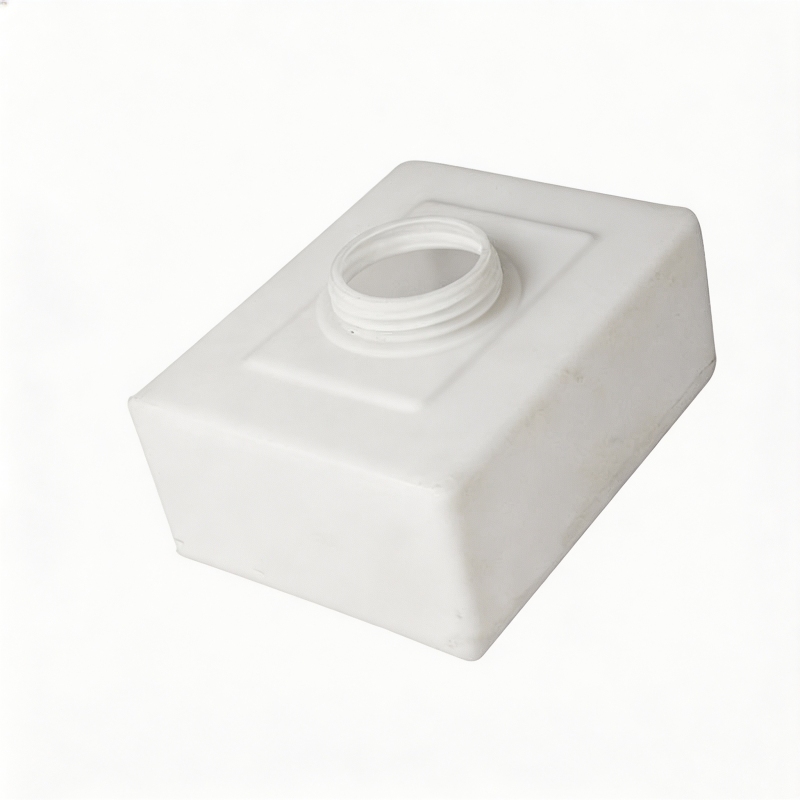

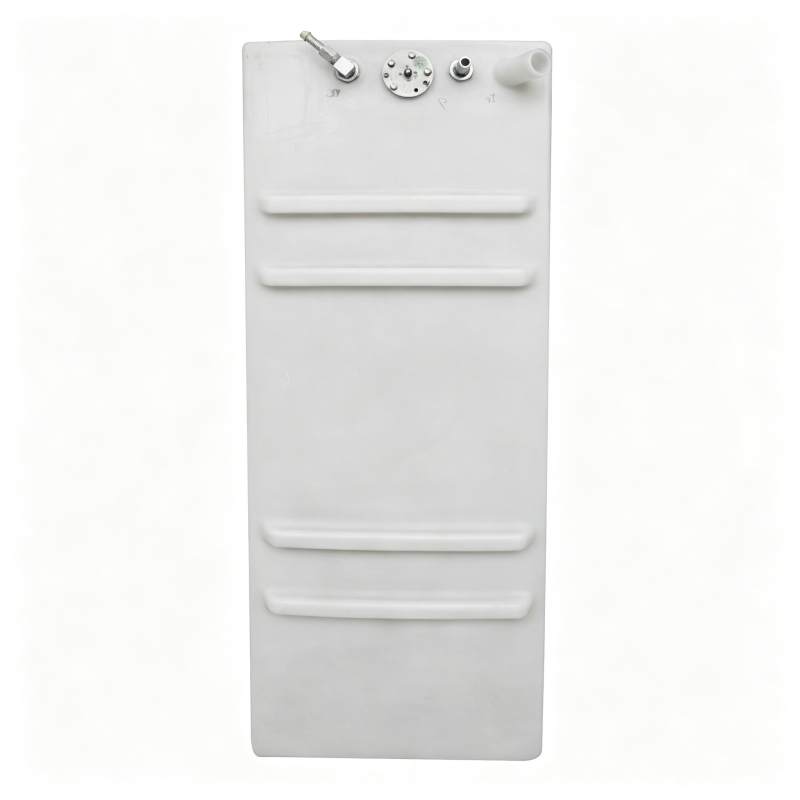

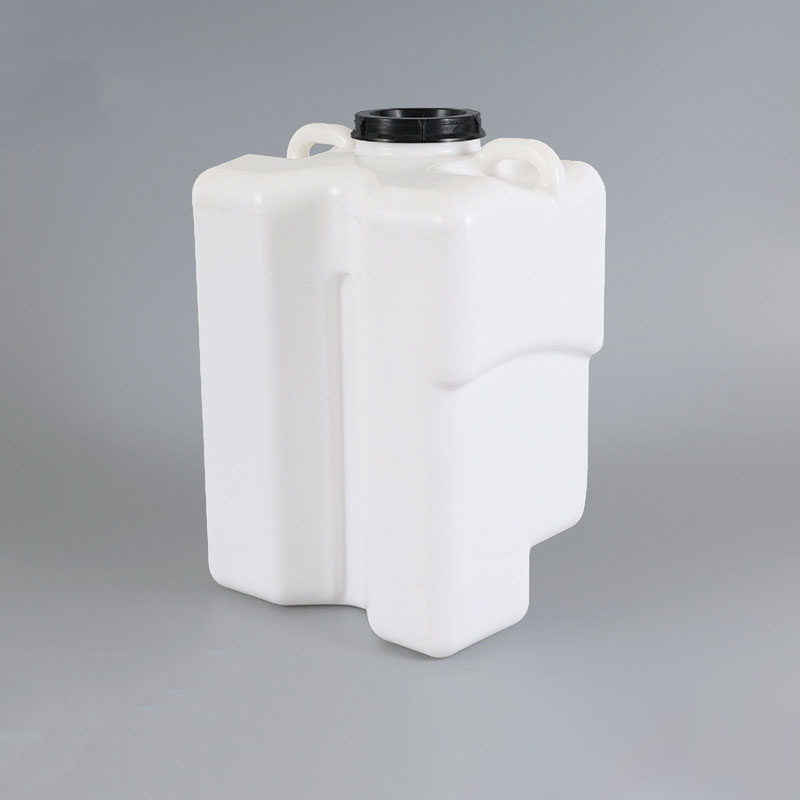

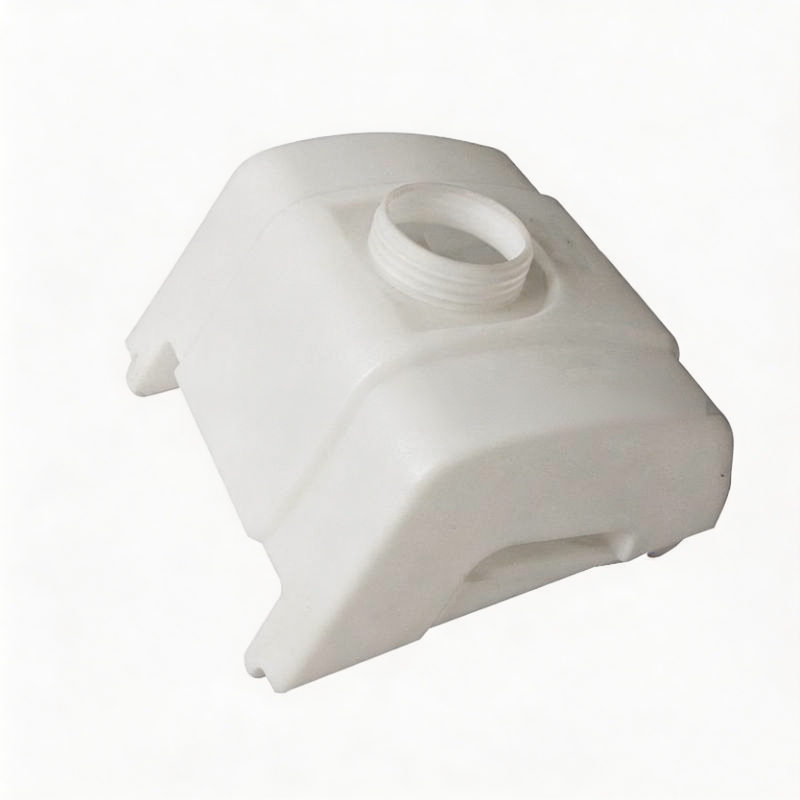

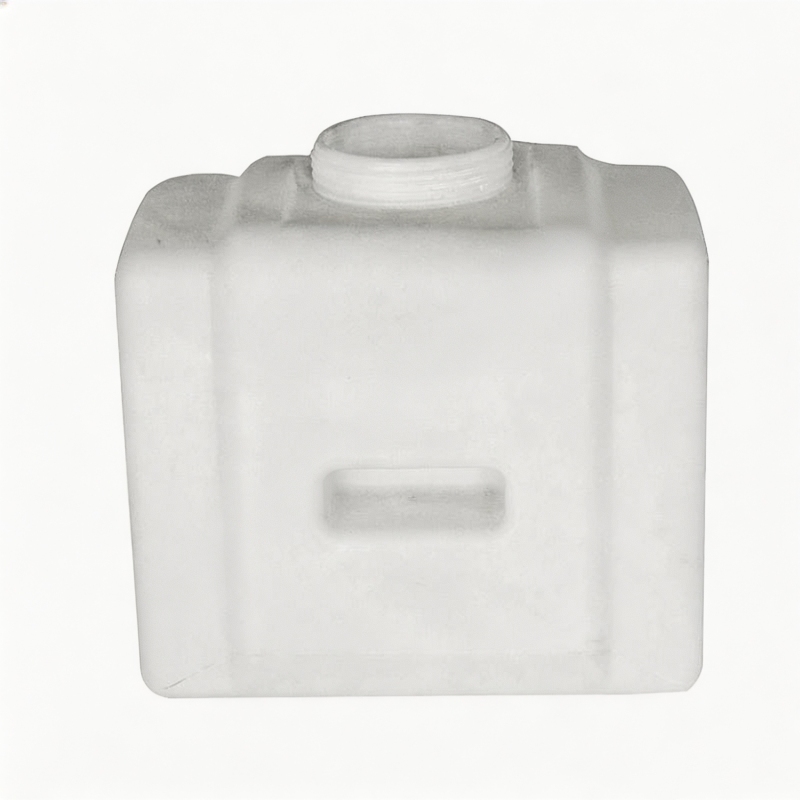

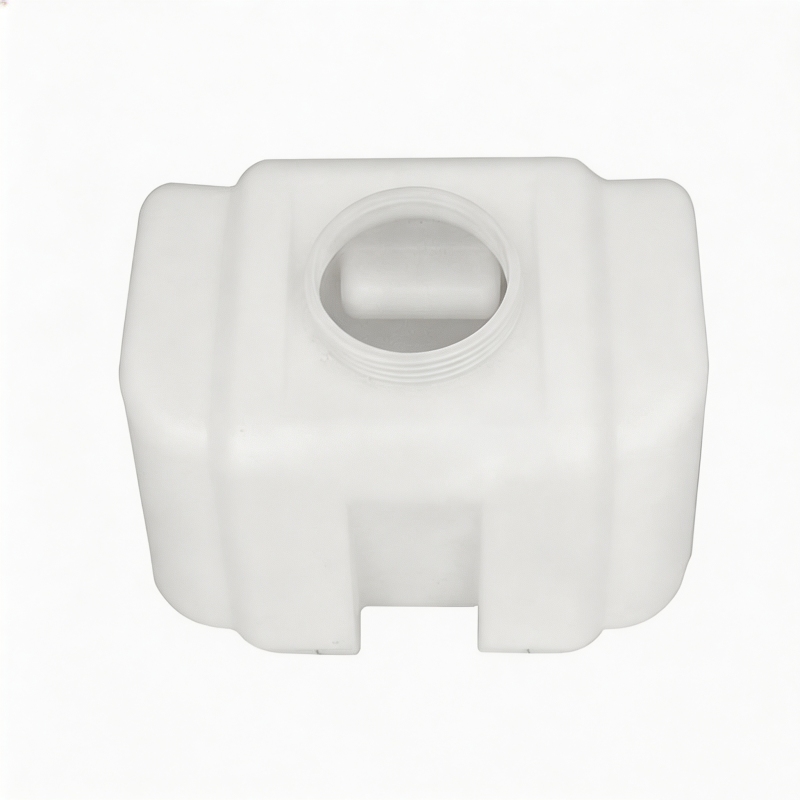

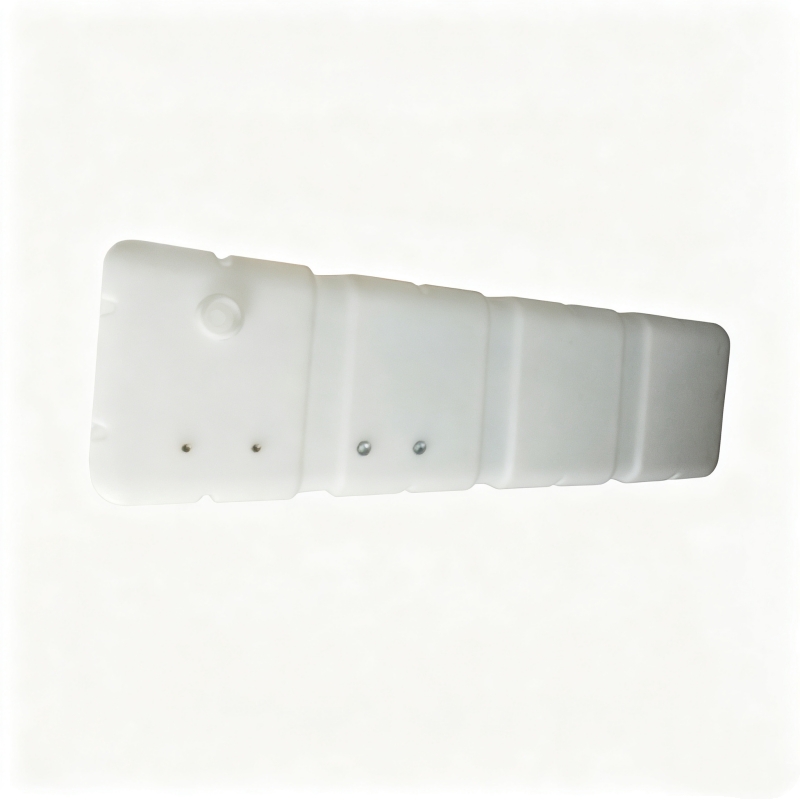

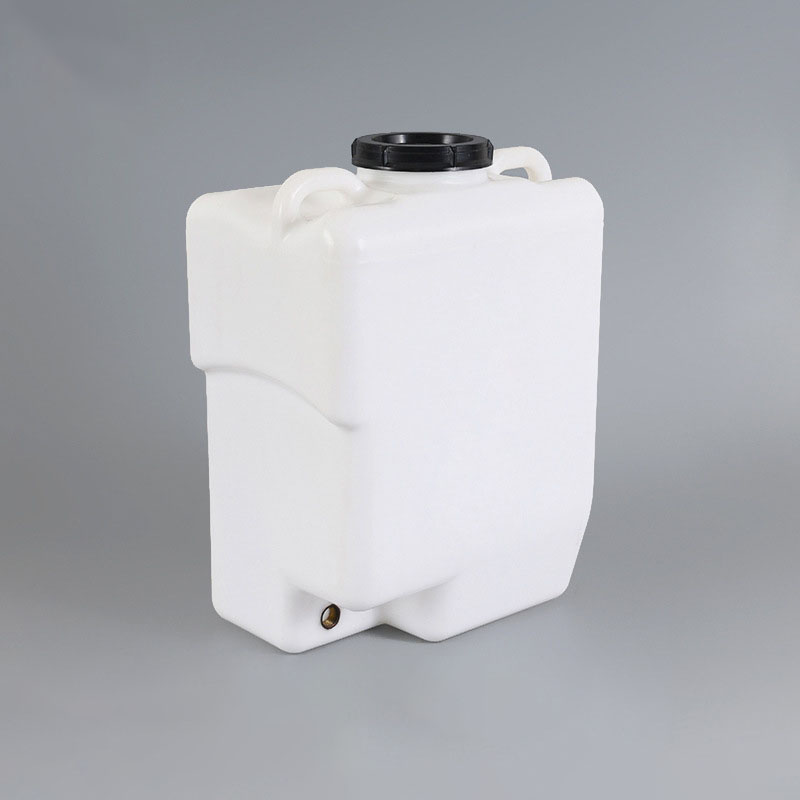

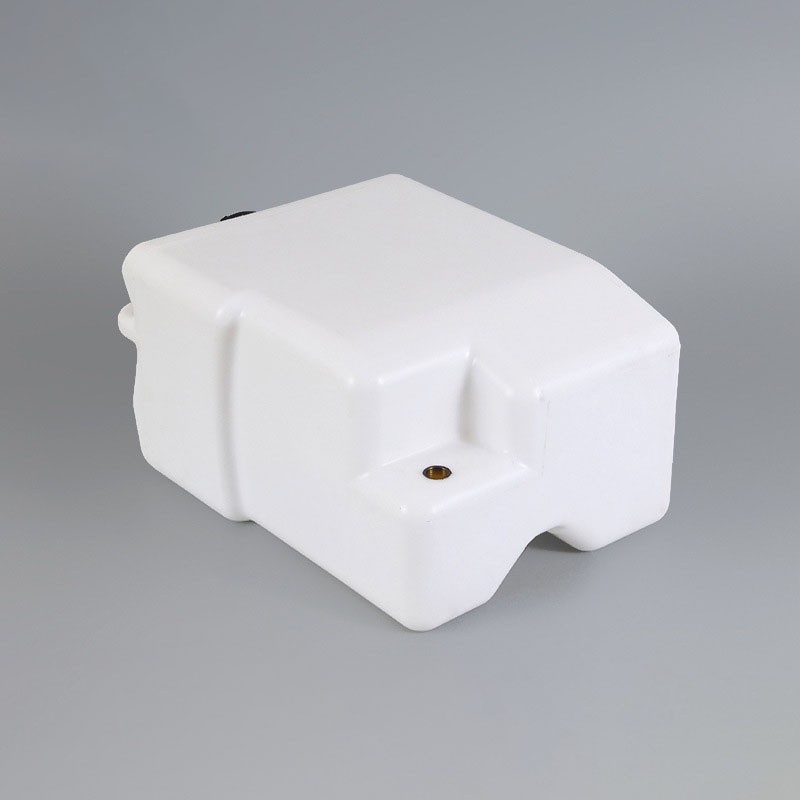

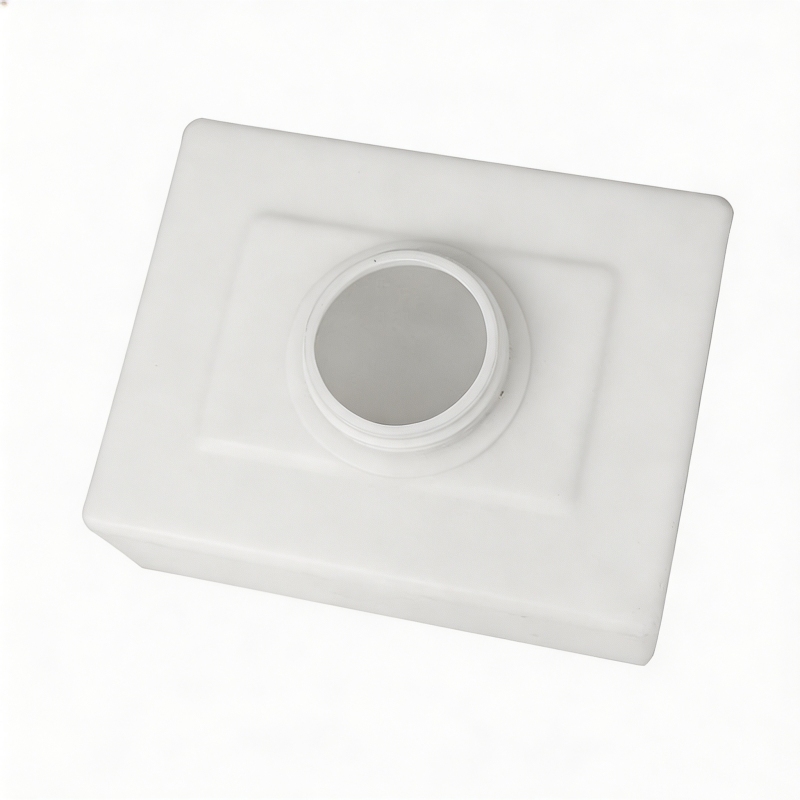

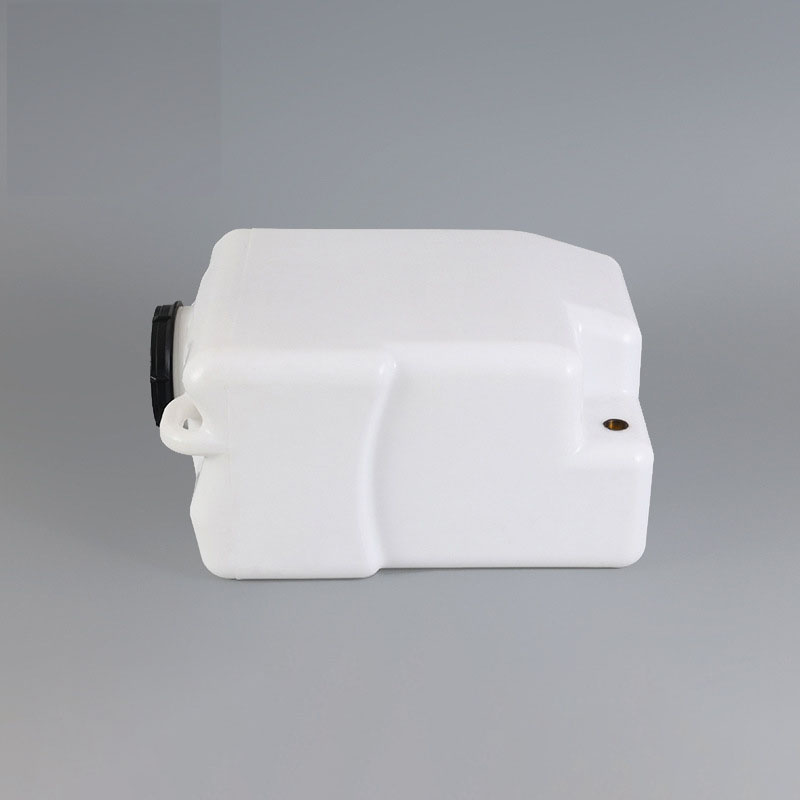

Product name Seamless HDPE Rotomolded RV Fresh Water Tank
OEM/ODM Customization & Supply Assurance（Some custom styles are available for reference.）

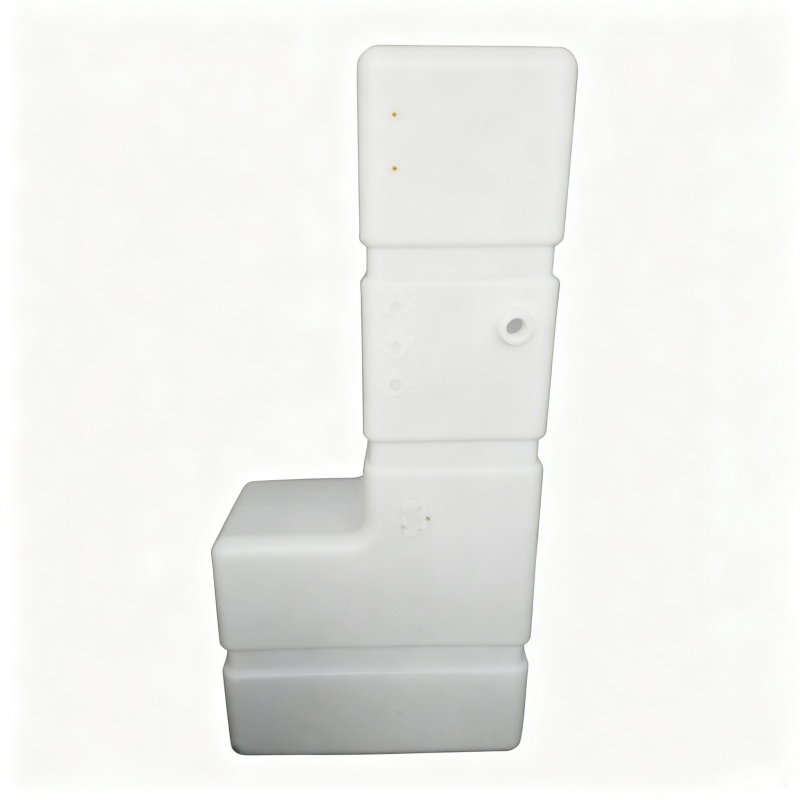

Comprehensive OEM/ODM Customization Capabilities Fully tailorable based on client CAD drawings, including tank dimensions, holding capacity, wall thickness, custom-threaded fitting insert placements, and Pantone colors (White, Black, Blue, Orange, etc.).
Factory-Direct Supply & In-House Tooling Development
Backed by high-precision cast aluminum mold development capabilities (mold lifespan of 8,000–10,000 cycles) and certified under ISO9001 for consistent quality and lower development costs.
product introduction
| Name | Seamless HDPE Rotomolded RV Fresh Water Tank |
| Mould Material | Aluminium casting mould |
| Mould surface traetment | Sandblast / Texture,Matt or Polishing |
| Wall Thickness | 3MM |
| Products Material | LLDPE, HDPE |
| Dimension | OEM Customized Size |
| Mould life | 8000 -- 10000pcs |
| Mould For | Rotomolding Products |
Features
About our products:
The main raw material is imported polyethylene (PE for short).
Performance:

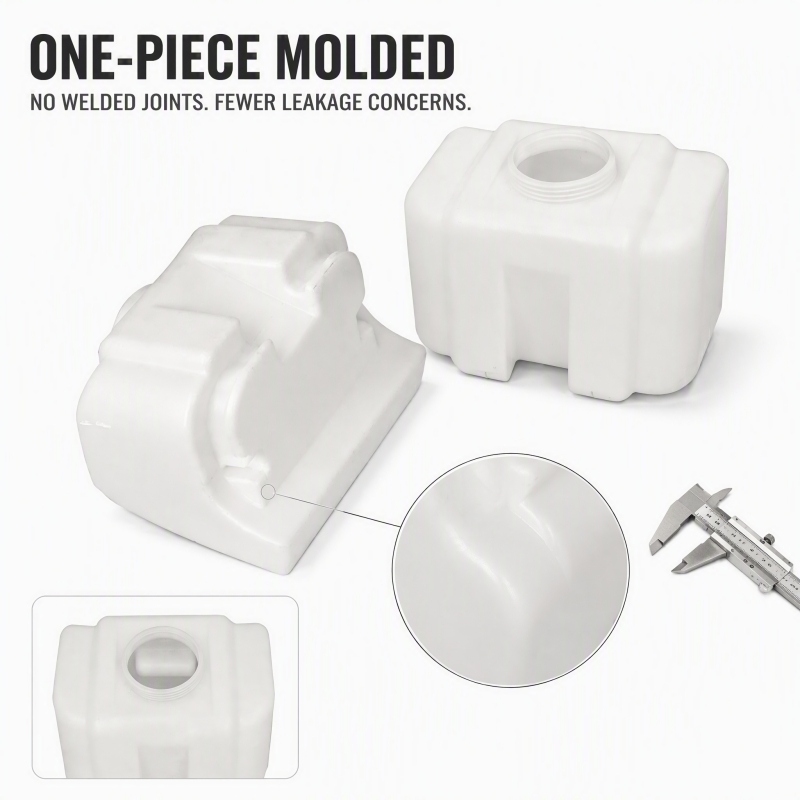

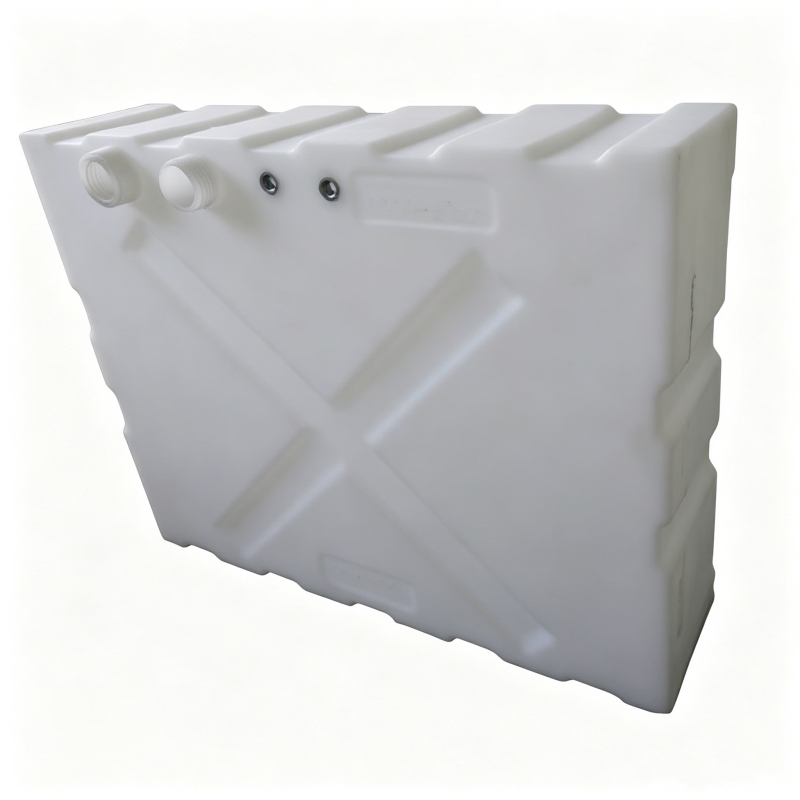

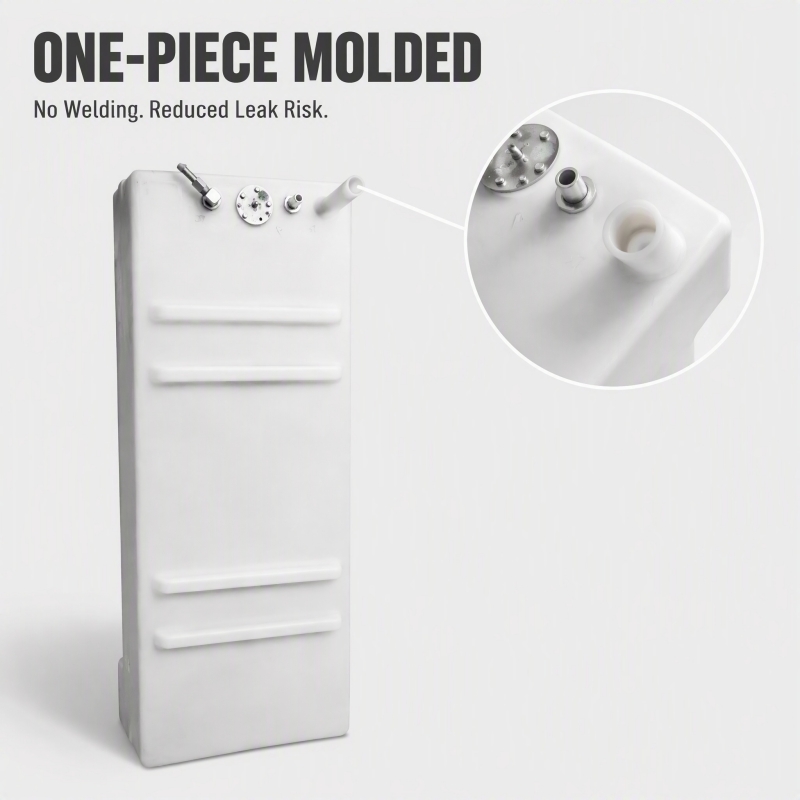

1)The tank body is subject to the intergral molding without welded joint.
2)It is externally and internally smooth and leakage-free, and is of such optimum performances as the sanitation and resistance to viration
3)Impact and strong acid and alkali, and longer service life tahan the injection products.
4)Scope of application: It can be used as the drug and chemicals tanks and can be used together with water treatment, environmental works, water softening equipment.

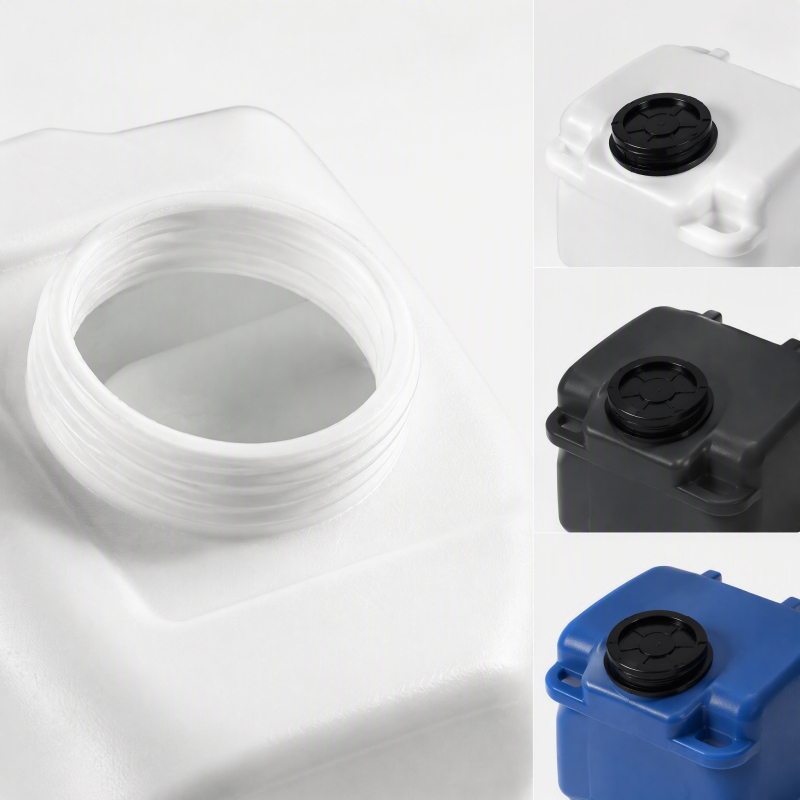

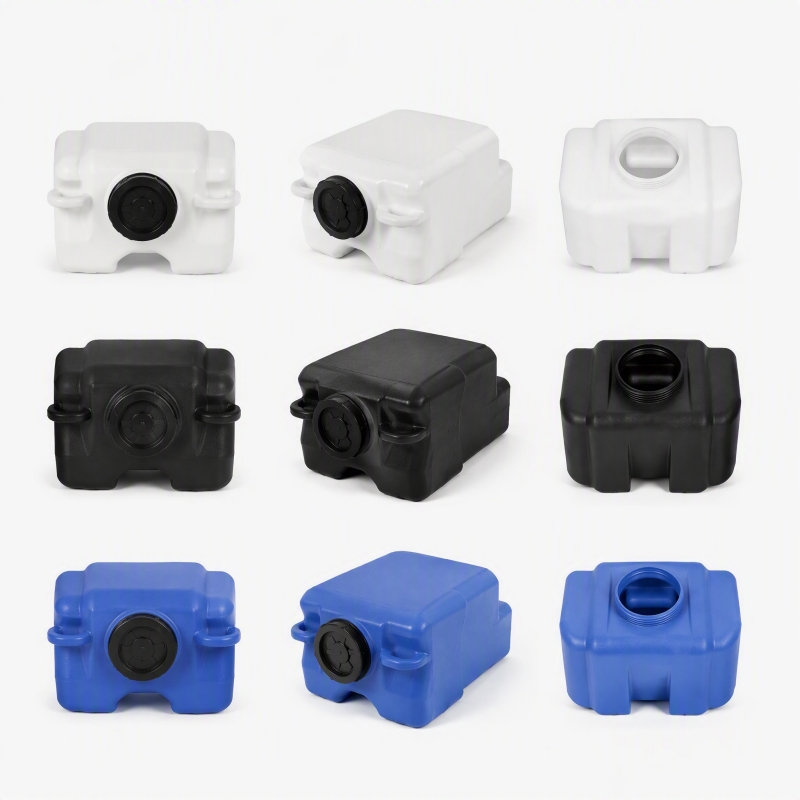

5)Common colors:White and black,blue.
Note:Specific specifications and colors can be customized!
Our advantages
OEM/ODM Rotomolded Polyethylene Water Storage Tanks: Advantages & Applications
100% Leak-Proof & High Impact Resistance & Food-Grade & Chemical Resistance & All-Weather & Anti-UV Durability & Space-Optimized & Modular Mounting
RV, Campervan & Off-Grid Mobile Living & Industrial Equipment & Washing Systems & Agricultural & Chemical Liquid Handling & Marine, Transport & Emergency Storage
 |
 |

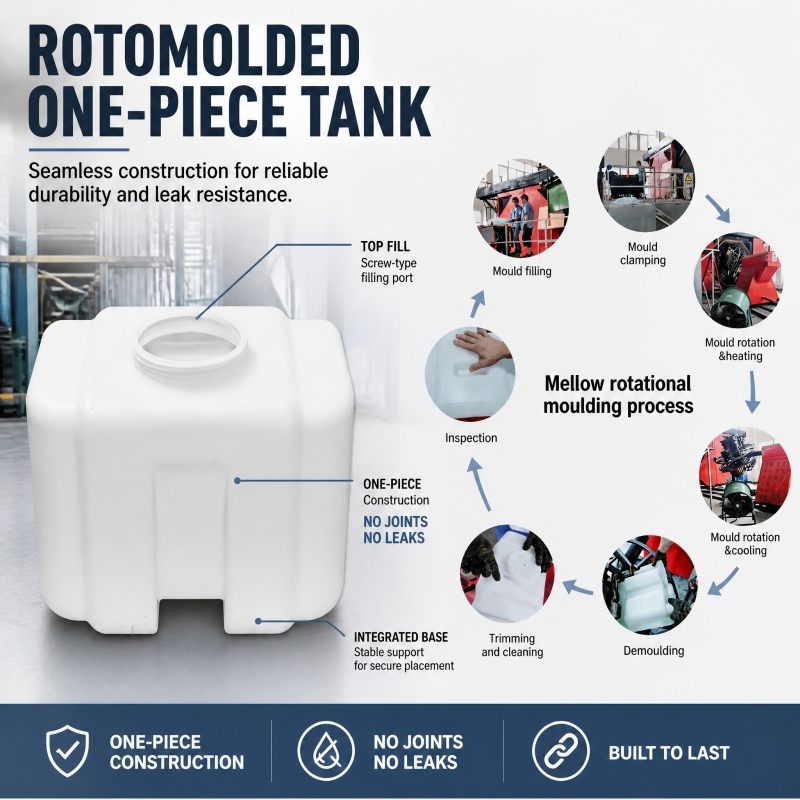

Rotomolded Water Tank Manufacturing Process
Material Grinding & Blending: Pulverizing PE resin into fine powder with UV additives.
Mold Preparation & Setup: Cleaning mold, applying release agent, and positioning brass inserts.
Precise Powder Dosing: Weighing exact resin powder into the mold cavity.
Bi-Axial Rotational Heating: Melting polymer uniformly inside a heated oven under dual-axis rotation.
Controlled Rotational Cooling: Solidifying plastic under continuous rotation to prevent warping.
Demolding & Shell Extraction: Opening mold and removing the seamless raw tank.
Flash Trimming & Finishing: Cutting excess parting-line seams and smoothing edges.
Drilling & Hardware Assembly: Machining connection ports and installing fittings and gaskets.
Air-Tightness Leak Testing: Submersion pressure testing for a 100% leak-proof seal.
FAQ

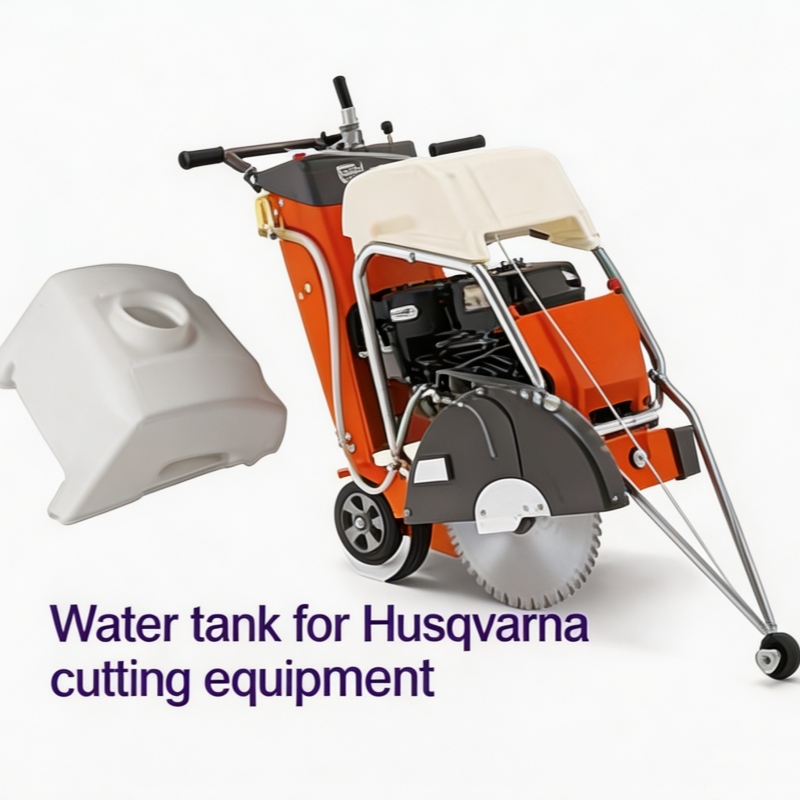

Our Plastic Water Tank for Concrete Cutter is manufactured using one-piece rotational molding with high-density polyethylene (PE). Unlike welded or injected plastics, rotomolding produces a seamless, joint-free body with uniform wall thickness and reinforced corners. This prevents structural cracking and fluid leakage under the intense vibration, impact, and stress of concrete cutting equipment.
The PE material is formulated with advanced UV stabilizers and anti-aging additives. It is highly resistant to sunlight degradation, temperature fluctuations, impacts, and concrete slurry, ensuring it will not warp, discolor, or become brittle over extended outdoor use.
Beyond its 100% seamless body, threaded brass inserts and connection ports can be directly integrated into the tank wall during the heating phase of the rotomolding process. This creates a permanent, vibration-proof seal around all plumbing fittings, preventing leaks even during high-rpm equipment operation.
As a direct rotomolding manufacturer, we offer complete custom development:
Structure & Capacity: Tailored tank geometry, custom wall thickness (3mm–8mm), and varied weights for higher strength requirements.
Hardware & Outlets: Custom-located threaded ports, brass fittings, and mounting brackets.
Branding & Aesthetics: Custom shell colors (Black, White, Orange, Yellow, etc.) and silk-screened or molded-in logos.
