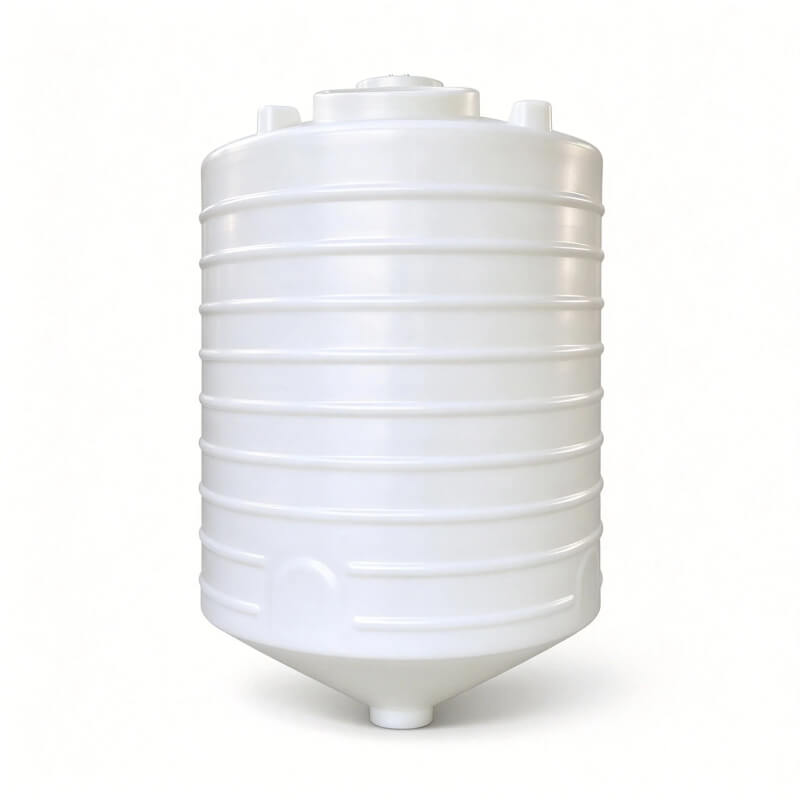

Rotomolded HDPE Cone Base Plastic Storage Tank

This HDPE Cone Bottom Tank adopts one-piece seamless rotomolding technology with excellent leakproof performance, and its conical base enables complete liquid drainage without residue, suitable for industrial water and chemical solution storage. Custom specifications and wholesale orders are supported, with optional interfaces and matching accessories available on request.

Item No :
ML-WT
Order(MOQ) :
200
Payment :
T/T
Product Origin :
China
Color :
Customizable
Shipping Port :
Port Xiamen, China
Lead Time :
30 Days

Inquiry Now

Product Name Rotomolded HDPE Cone Base Plastic Storage Tank

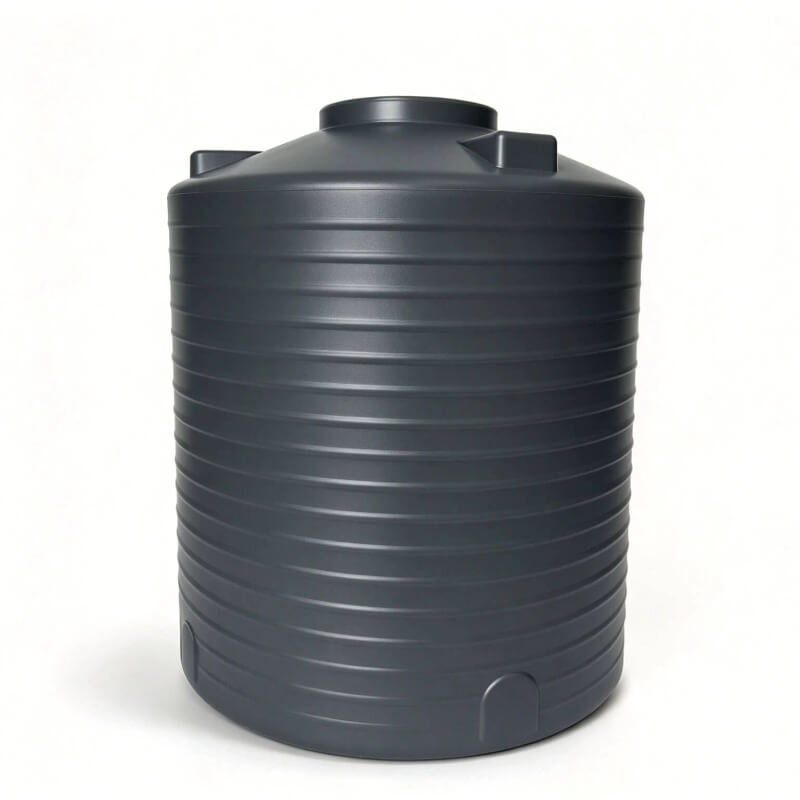

Vertical Water Tank

From 200L to 50 Tons

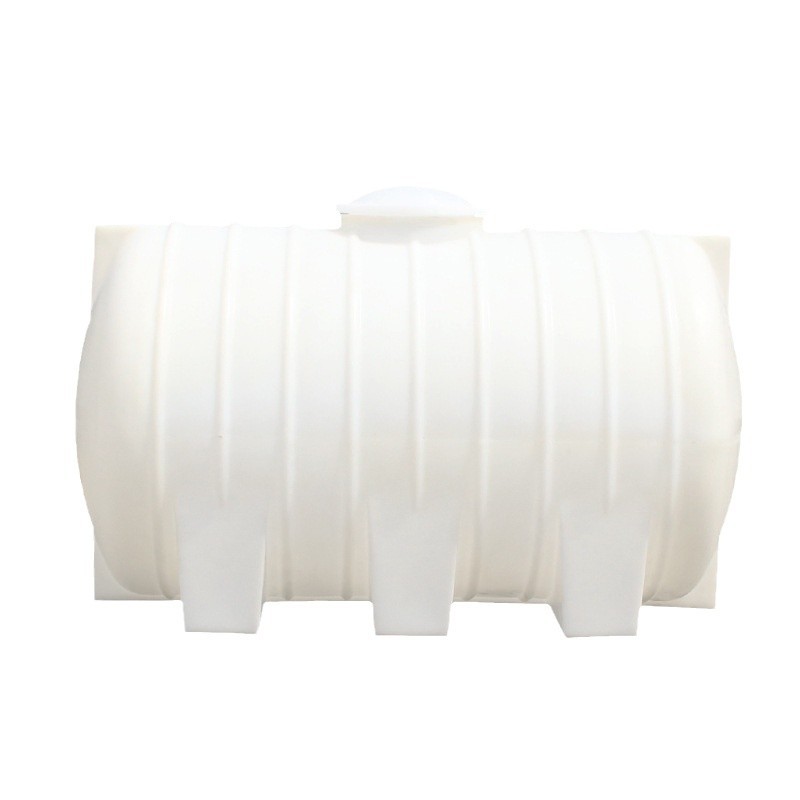

Horizontal Water Tank

From 500L to 20 Tons

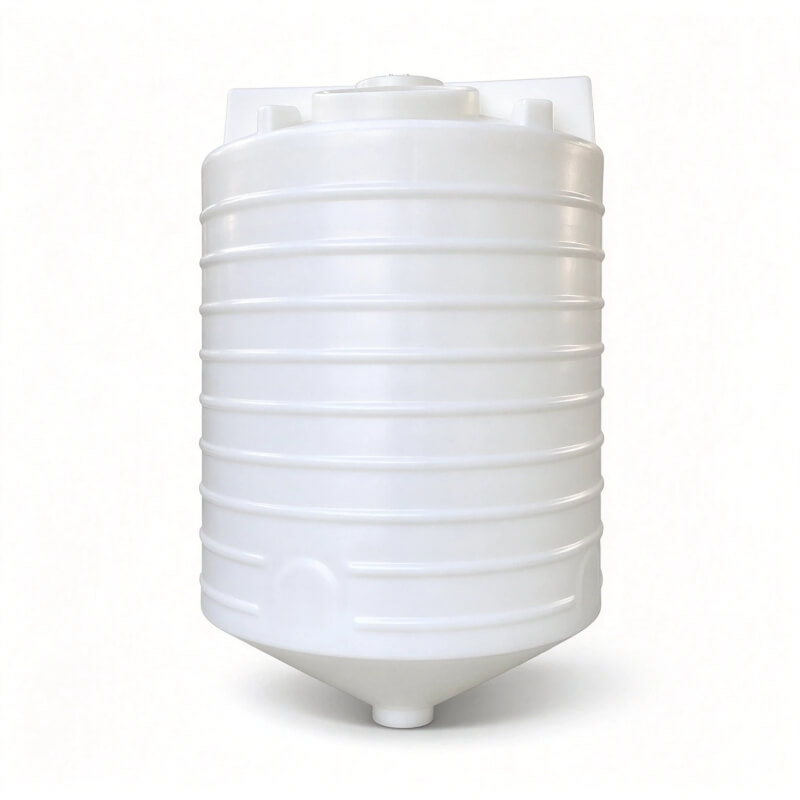

Vertical Cone Bottom Tank

From 500L to 20 Tons

Specifications

Material	Premium Polyethylene (UV Stabilizer, Anti-Aging Ingredient & Food Grade)
Manufacturing Process	One-piece Seamless Rotational Molding
Application	Chemical Liquid, Reagent, Wastewater Storage and Treatment
Service life	8 Years
Color	Customizable

Size	Height (mm)	Diamison (mm)	Bore Diameter (mm)
PT500	1400	800	380
PT1000	1640	1090	380
PT2000	1950	1380	380
PT3000	2100	1560	600
PT5000	2500	1800	600
PT10000	3400	2200	600
PT15000	3700	2700	600
PT20000	4500	2700	600

Features

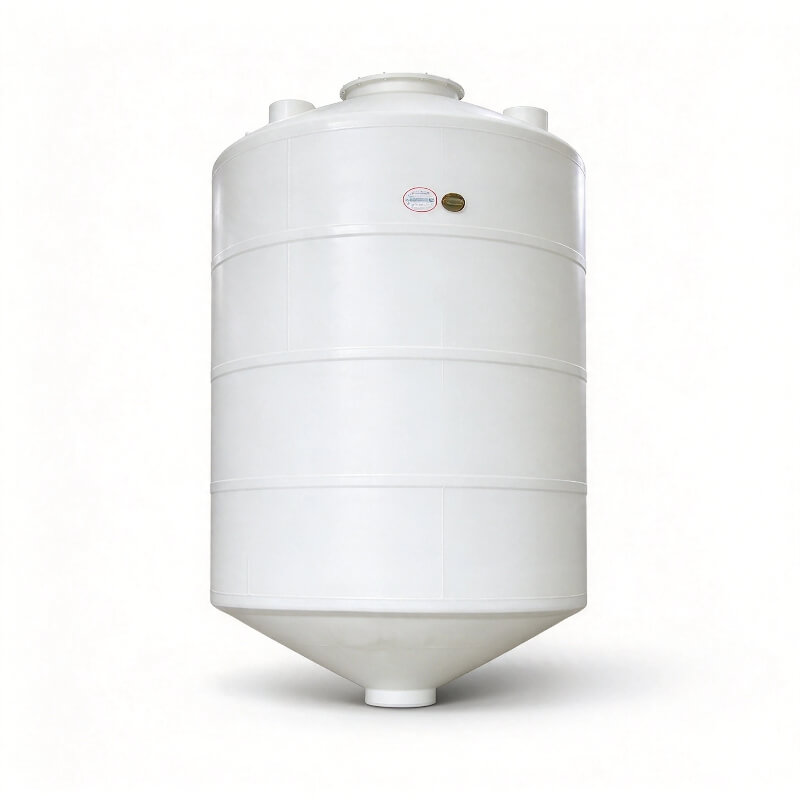

Cone Bottom Pickling Tank

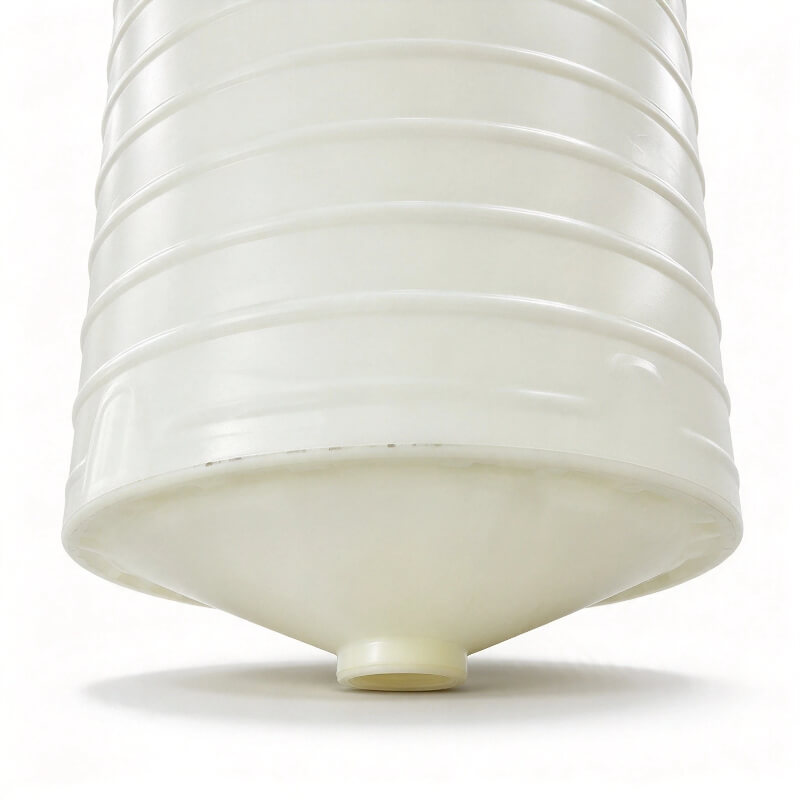

The tank is built with a funnel-shaped bottom, which achieves complete drainage of liquid and residue inside the vessel. It solves the pain points of conventional designs: insufficient bottom pickling, slow acid and water discharge, and low pickling efficiency.

The thickened bottom is fitted with reinforcing ribs, which not only improves load capacity but also provides reliable anti-slip performance.

Display

What is a conical rotomolded water tank?

A conical rotomolded water tank is a one-piece plastic tank manufactured by rotational molding. It features a cone-shaped bottom that allows liquids and sediment to collect at the lowest point for full drainage. It is widely used for water treatment, chemical storage, aquaculture, hydroponics, and liquid fertilizer storage.

What material is used for the tank?

We use food-grade LLDPE/PE with UV stabilizers and corrosion resistance. The tank is rotationally molded as a seamless one-piece body for strong impact resistance and long service life.

Does a cone bottom tank need a steel stand?

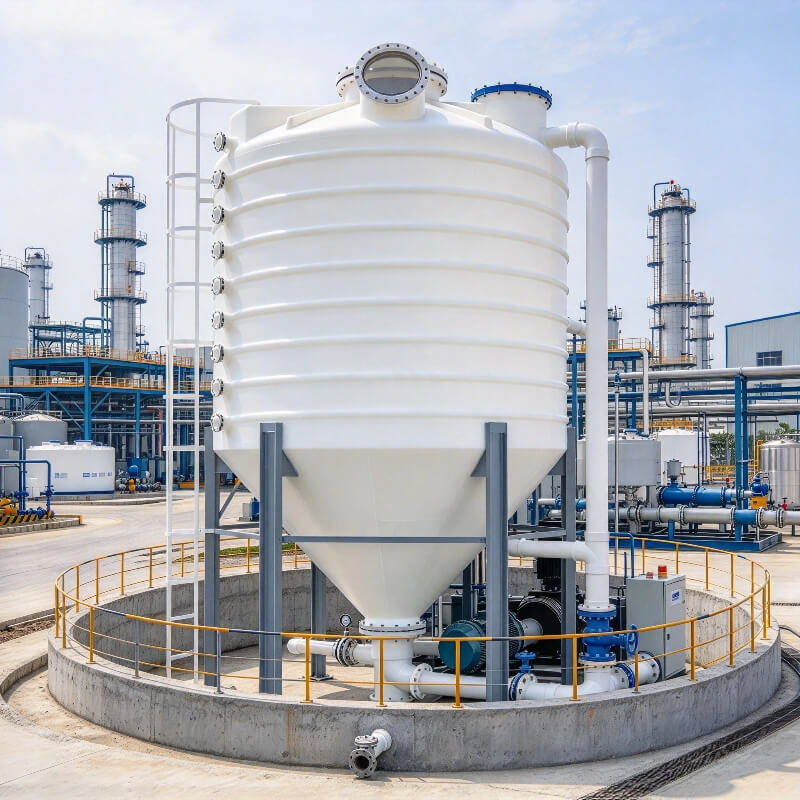

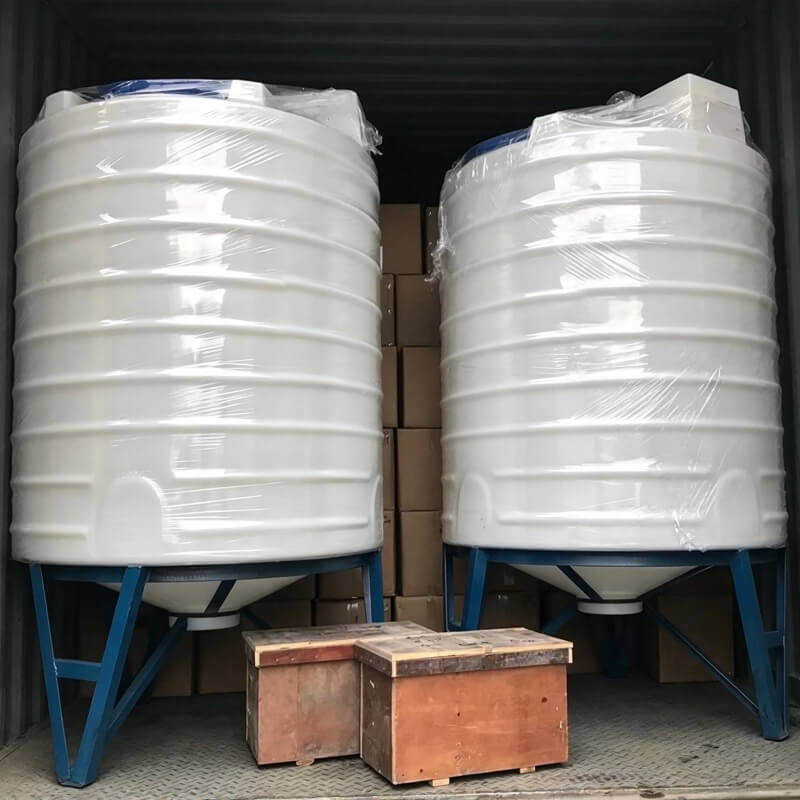

Yes, most conical bottom tanks are installed on a steel support stand. The stand provides stability and enough clearance for the bottom outlet and drainage pipe. Carbon steel with coating or stainless steel is available.

How does full drainage work?

The cone bottom directs liquid and sediment to the lowest discharge point. This reduces residual liquid and makes cleaning easier than a flat-bottom tank.

Hot Tags :

Subject : Rotomolded HDPE Cone Base Plastic Storage Tank

Related Products

Durable Rotomolded Seamless Vertical PE Water Tank

This seamless PE water tank delivers leak-proof, corrosion-resistant storage for industrial, agricultural, and chemical applications. Designed for maximum durability, our vertical and horizontal water tank withstands harsh weather and strong chemicals to ensure long-lasting performance indoors and outdoors. Available in multiple capacities (from 200L to 50 Tons options) with custom fittings to meet your precise facility needs.

View Detail
Heavy-Duty Rotomolded Horizontal PE Water Tank

Designed for liquid management and mobile transport, this seamless horizontal chemical storage tank features a heavy-duty ribbed body that resists liquid pressure, impact, and stress-cracking. Available in capacities from 500L to 20 Tons, our low-profile PE horizontal tank serves as a 100% rustproof alternative for water treatment, pesticide spraying, and chemical delivery.

View Detail
Rotomolded HDPE Cone Base Plastic Storage Tank

This HDPE Cone Bottom Tank adopts one-piece seamless rotomolding technology with excellent leakproof performance, and its conical base enables complete liquid drainage without residue, suitable for industrial water and chemical solution storage. Custom specifications and wholesale orders are supported, with optional interfaces and matching accessories available on request.

View Detail
Durable Seamless PE Plastic Septic & Aquaculture Tank

This Rotomolded Three-Chamber Septic Tank is manufactured in one-piece HDPE construction, no splicing or welding seams to eliminate leakage risk. It features 50-year underground service life and customizable volumes, ideal for domestic rural sewage disposal and biogas collection.

View Detail
Corrosion-Resistant Steel Framed IBC Tote Water Tank

Streamline your supply chain with our heavy-duty 1-ton plastic IBC container, manufactured from 100% virgin HDPE to safely handle potable water, oils, and industrial chemicals. Equipped with a reinforced outer cage and secure discharge valves, this food-grade liquid storage tote provides an economic, reusable, and rustproof alternative for large-scale liquid logistics.

View Detail

Rotomolded HDPE Cone Base Plastic Storage Tank

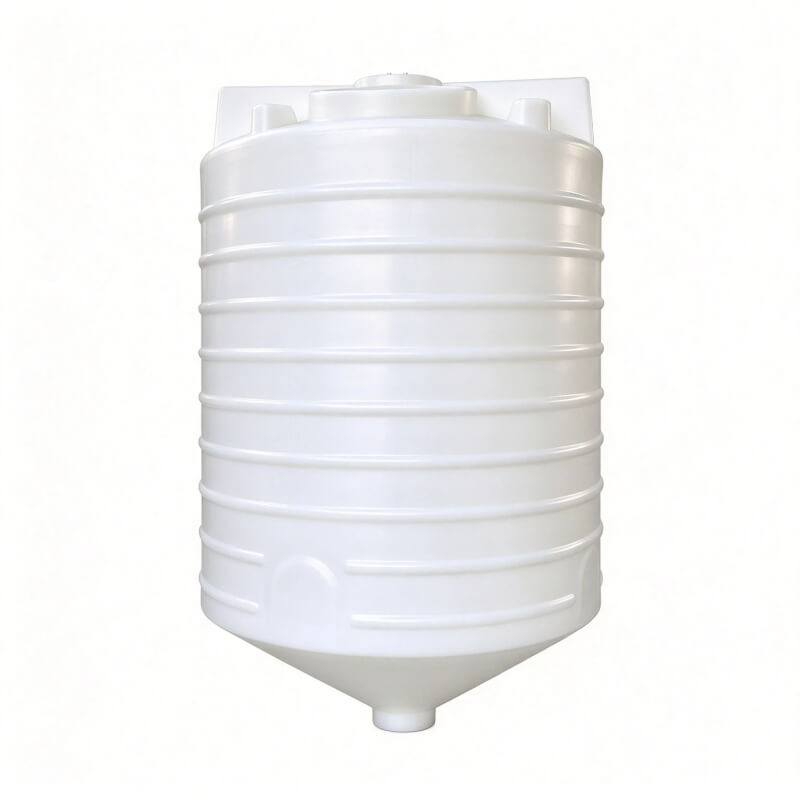

Plastic Conical Bottom Tank
