Multi‑Functional Rotomolded Helm Console With Integrated Seat

Rotomolded HDPE Marine Steering Station With Rear Observer Bench

Multi‑Functional Rotomolded Helm Console With Integrated Seat

This multi‑functional rotomolded helm console integrates a helm station with an integrated rear seat in one unit. The front panel accommodates the steering wheel, navigation display, and switches, while the rear fixed seat provides comfortable seating for observers or passengers. Built as a one-piece hollow structure, it delivers excellent impact resistance and durability. UV-stabilized and salt spray resistant, it is well suited for 4–9m fishing and leisure vessels.

Item No :
ML-HCWS001 / ML-HCWS002 / ML-HCWS003
Order(MOQ) :
50 pieces
Payment :
T/T or L/C at signt
Product Origin :
Made in China
Color :
Customizable
Shipping Port :
Xiamen Port, China
Lead Time :
30 Days
Weight :
Varies by spec

Inquiry Now

Product Name Fishing Boat Helm Console With Rear Seat – Rotomolded HDPE

Compact Helm Console With Integrated Seat

Size: L810×W810×H760 (mm)

L31.9"×W31.9"×H29.9"(in）
Standard Helm Console With Integrated Seat

Size: L880×W880×H820(mm)

L34.6"×W34.6"×H32.3" (in)

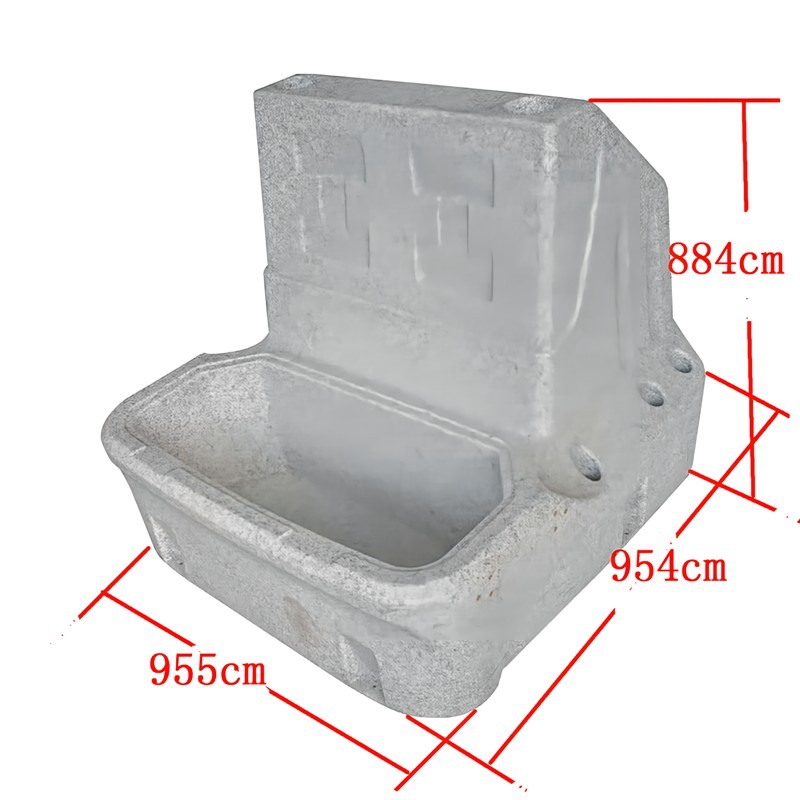

Deluxe Helm Console With Integrated Seat

Size: L955×W954×H884(mm)

L37.6"×W37.6"×H34.8“ (in)

Specifications

	Series 1	Series 2	Series 3
Product Name	Compact Helm Console With Integrated Seat	Standard Helm Console With Integrated Seat	Deluxe Helm Console With Integrated Seat
Item No.	ML-HCWS001	ML-HCWS002	ML-HCWS003
Materials	HDPE with UV stabilizer	HDPE with UV stabilizer	HDPE with UV stabilizer
Overall Dimension	L810 × W810 × H760 (mm) / L31.9" × W31.9" × H29.9"(in）	L880 × W880 × H820 (mm) / L34.6" × W34.6" × H32.3"(in）	L955 × W954 × H884 (mm) / L37.6" × W37.6" × H34.8"(in）
Manufacturing Process	Rotomolding	Rotomolding	Rotomolding
Product Structure	One‑piece hollow molded	One‑piece hollow molded	One‑piece hollow molded
Weight	Approx. 25kg / 55lbs	Approx. 31kg / 68lbs	Approx. 35kg / 77lbs
Custom Options	Color, cutouts, dimensions, new mold development	Color, cutouts, dimensions, new mold development	Color, cutouts, dimensions, new mold development

Description

Dual-purpose integrated design – helm station on front with built-in rear fixed seat

Rear integrated fixed seat accommodates 1–2 observers or passengers

One-piece hollow rotomolded HDPE – high structural strength and seamless waterproof

Front mounting panel for navigation displays, fish finders, switch banks, and steering wheel

Enclosed storage compartment under the seat

UV-stabilized and salt spray resistant – suitable for year-round inshore and freshwater use

Fixed seat design with no moving parts – no rust or corrosion in saltwater environments, maintenance-free

Full customization: colors, cutouts, seat structure, logo

Display

Can the rear seat support passengers? What is the weight capacity?

Yes. The seat features an integrated fixed design with a maximum recommended weight capacity of 150kg (approx. 330lbs), accommodating 1–2 adults. The seat is molded as one piece with the console housing, ensuring structural stability and reliability.

Is there storage space under the seat?

Yes. An enclosed storage compartment is built under the seat, perfect for life jackets, tackle, tools and other gear to keep the deck tidy.

What are the main differences between Compact, Standard and Deluxe models?

The three sizes increase progressively (L810/880/955mm), with larger mounting panels, wider seats, and more storage space. Compact fits 4–6m small boats, Standard is the 5–8m mainstream configuration, and Deluxe (L955×W954×H884) fits 6–9m large vessels with 12‑inch display capability.

Are the console heights suitable for different driving postures?

The console heights accommodate different driving preferences: Compact (H760mm) is recommended for seated drivers, Standard (H820mm) for mixed use, and Deluxe (H884mm) for standing observation on larger vessels (over 6m), while all models remain operable from either posture.
